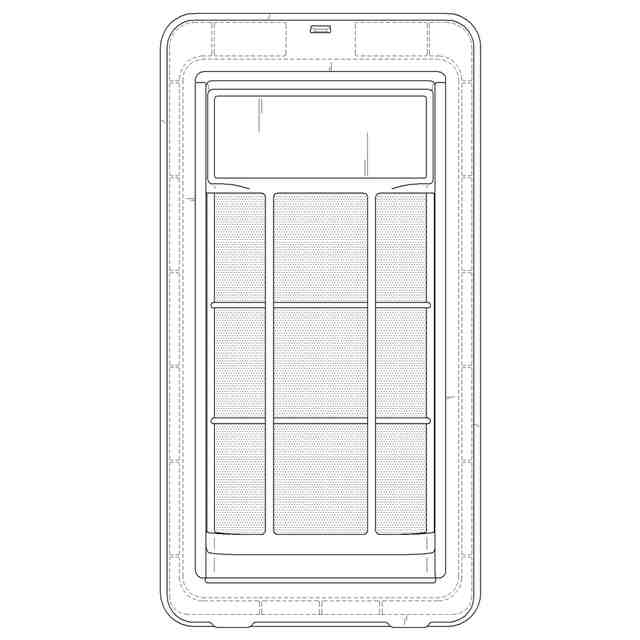

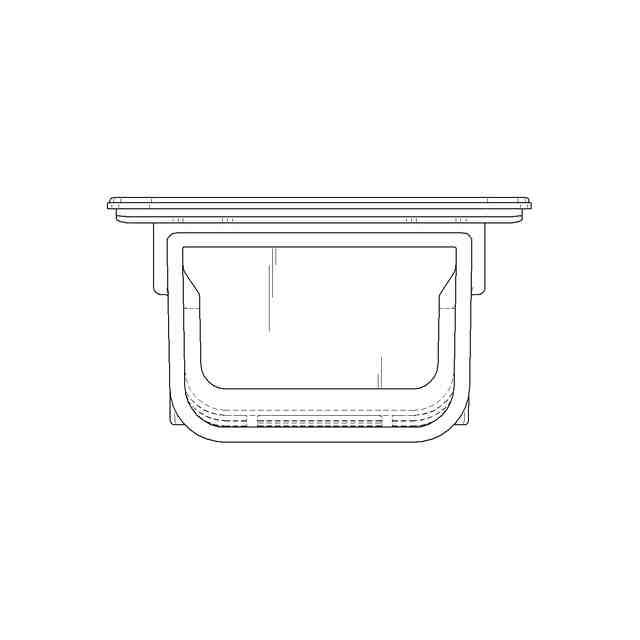

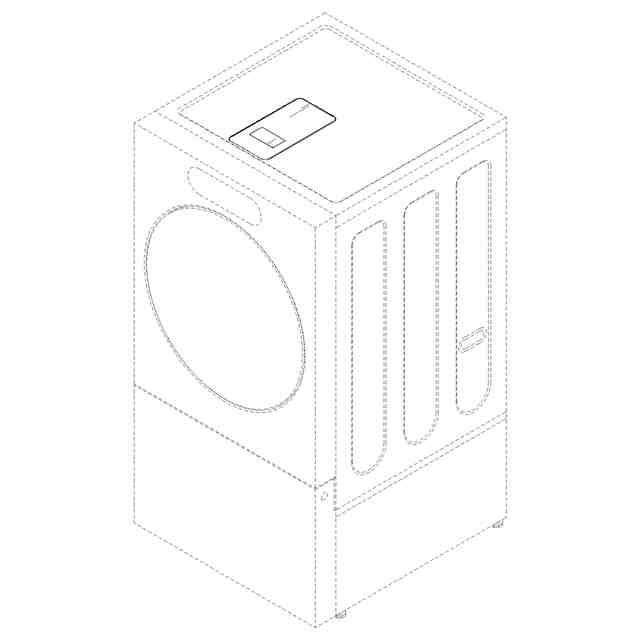

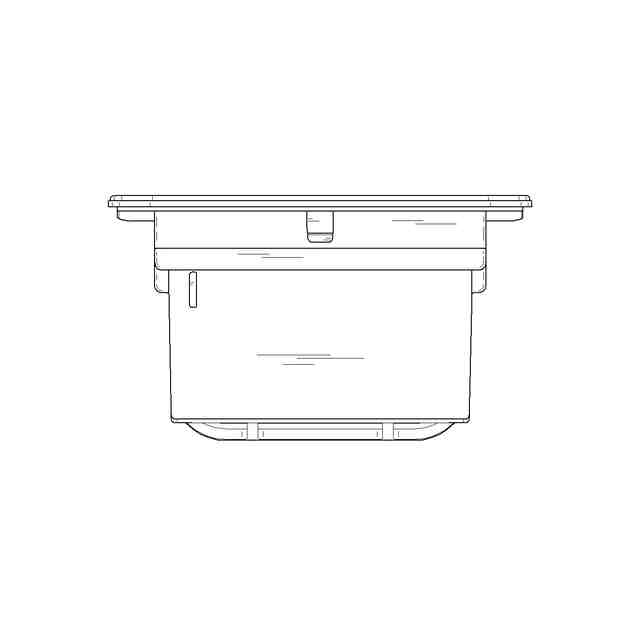

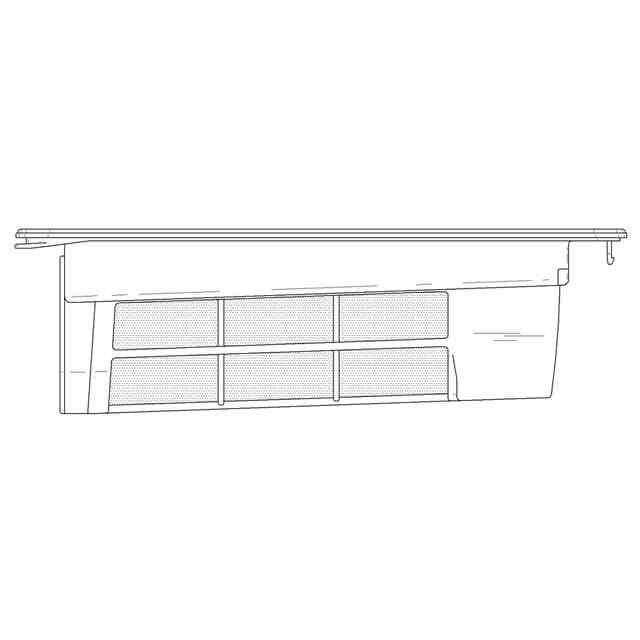

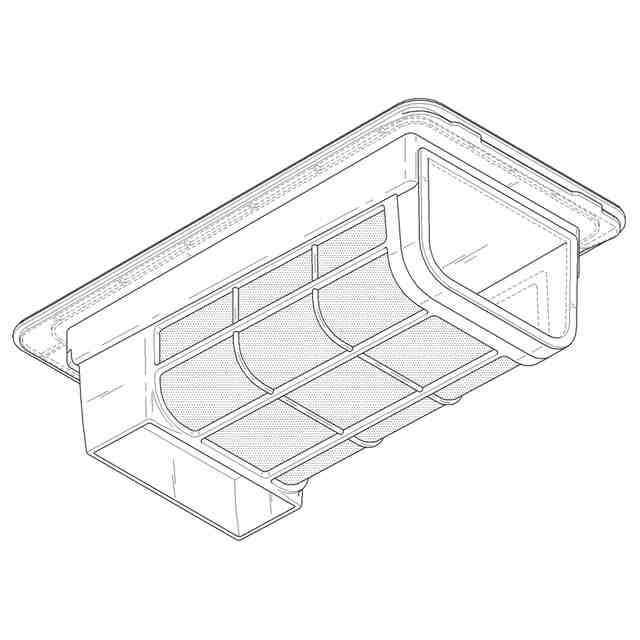

発行日2025-04-01 公報種別意匠公報(S) 登録番号1794857 登録日2025-03-24 意匠に係る物品Filter for washing machine 意匠分類C3-5296(清掃用具、洗濯用具等) 出願番号2023501068,30-2022-0051276 出願日 意匠権者LG ELECTRONICS INC. 代理人 意匠に係る物品の説明 意匠の説明This article, located on the top plate of a washing machine, is used to capture and remove lint and other debris from laundry during the washing process; a right view is omitted because it is a mirror image of the left view; reproduction 1.8 shows a state of use of the claimed design; reproduction 1.9 shows another state of use being combined with a washing machine; the broken lines shown in reproductions 1.1 to 1.8 depict portions of the filter for washing machine that form no part of the claimed design; the broken lines shown in reproduction 1.9 depict environmental structure that form no part of the claimed design; the shading lines are used to show the surface of the claimed design and do not represent its surface ornamentation. 1.1)Top front perspective; 1.2)Bottom back perspective; 1.3)Front; 1.4)Back; 1.5)Left; 1.6)Top; 1.7)Bottom; 1.8)Reference; 1.9)Reference この意匠をJ-PlatPatで参照する
