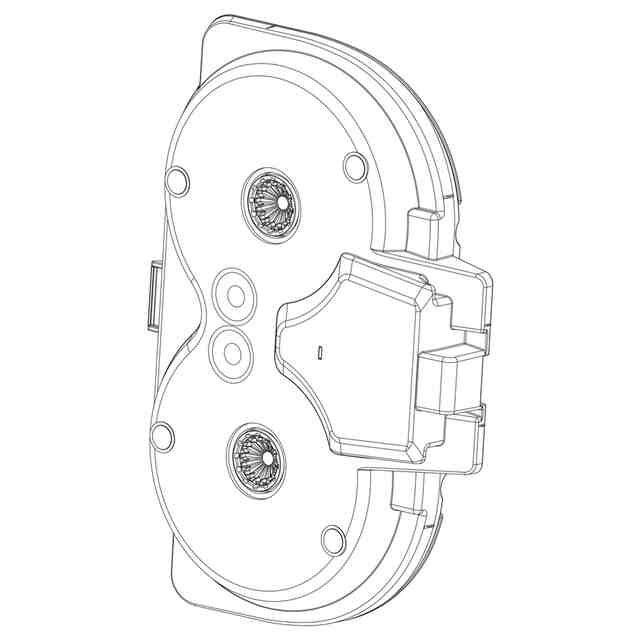

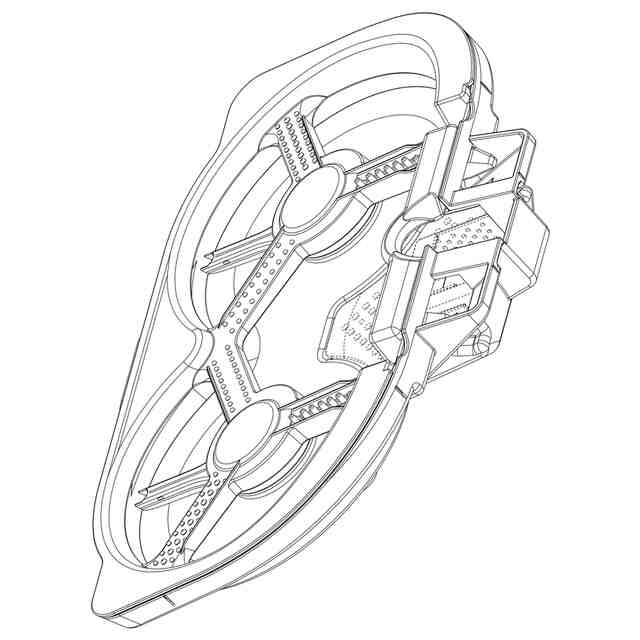

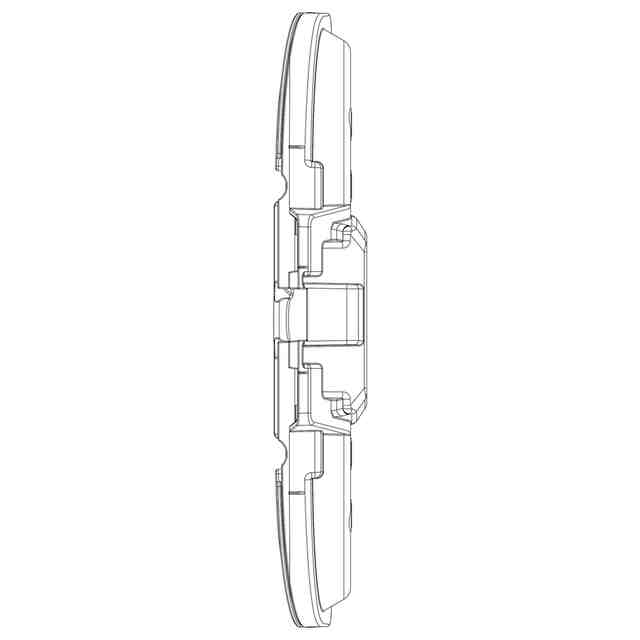

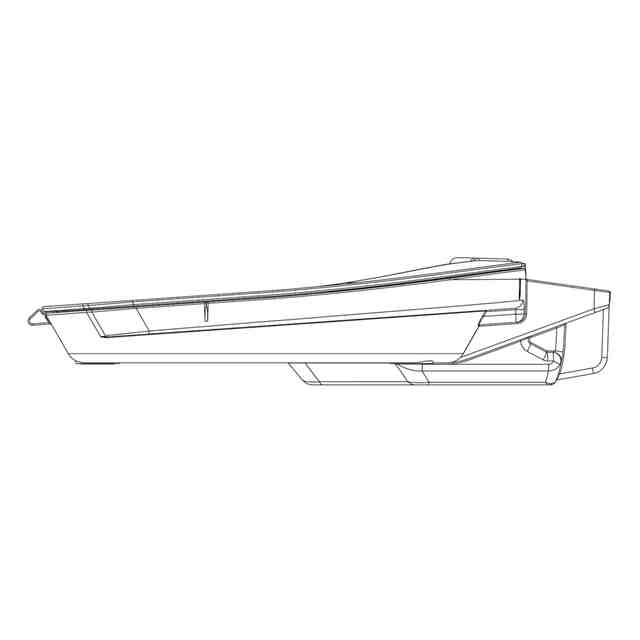

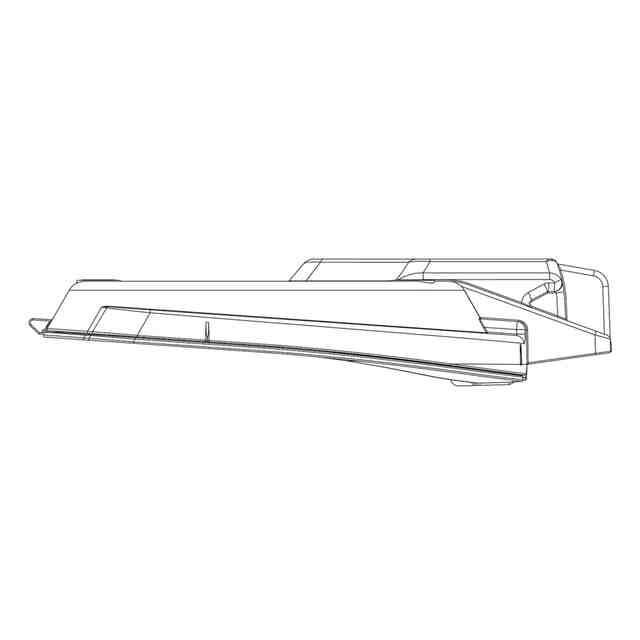

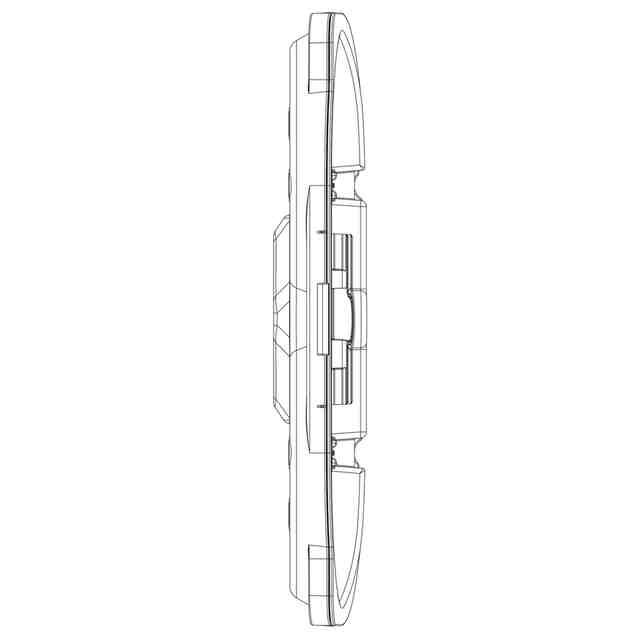

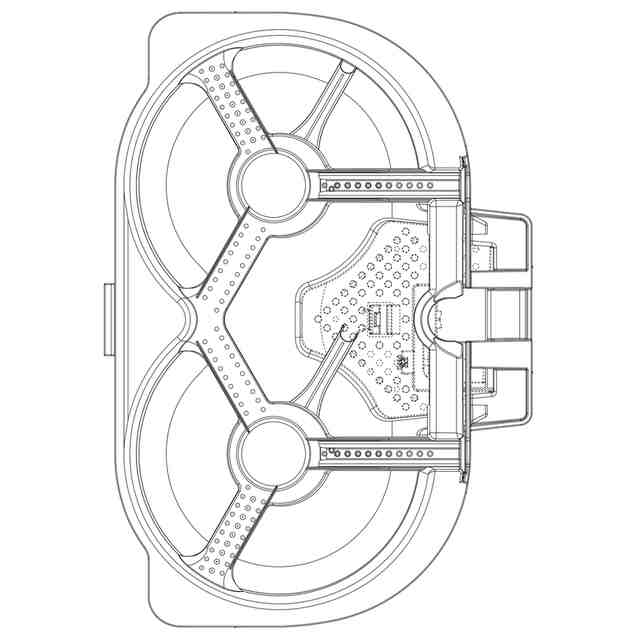

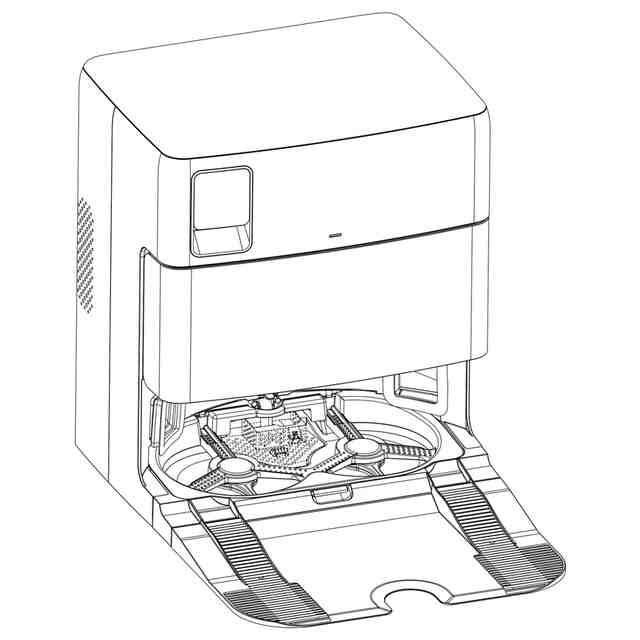

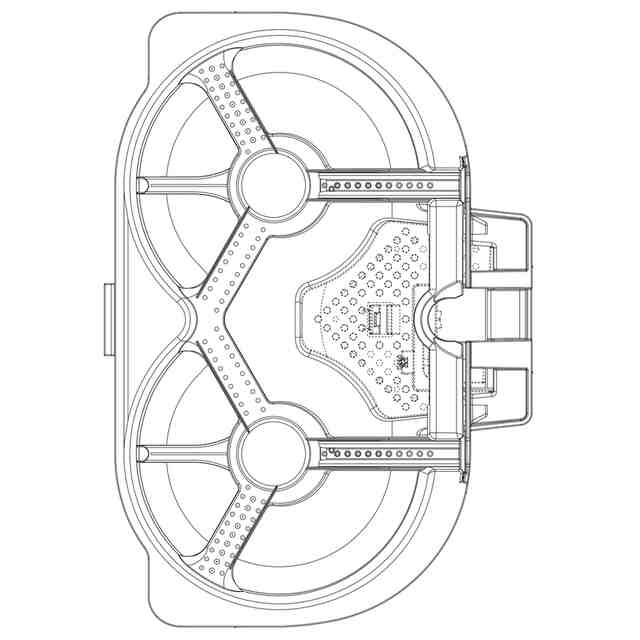

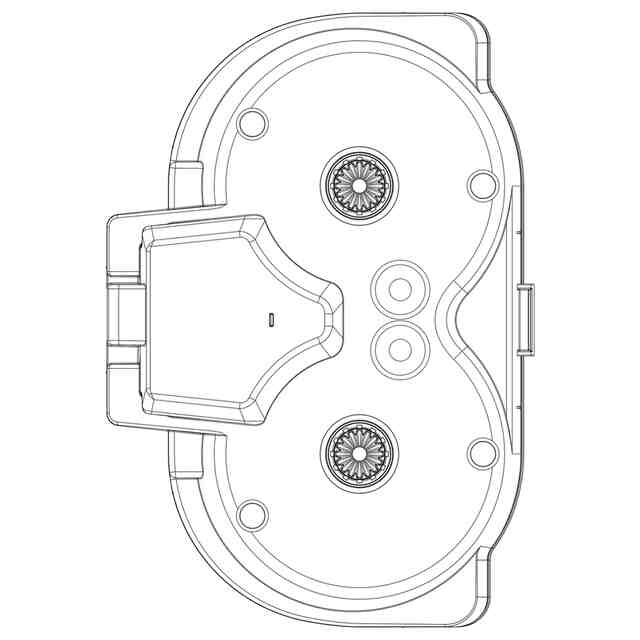

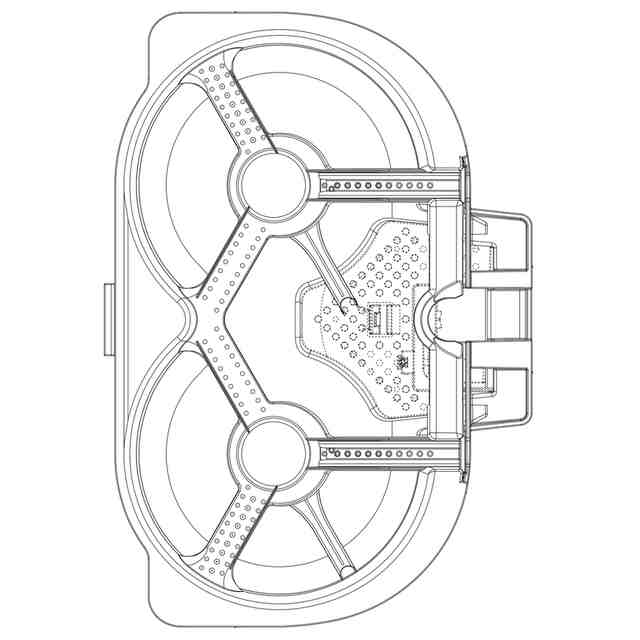

発行日2025-07-08 公報種別意匠公報(S) 登録番号1803193 登録日2025-06-30 意匠に係る物品Self-cleaning assembly of docking station for cleaning appliance 意匠分類C3-4190(清掃用具、洗濯用具等) 出願番号2024502926,2024301572252 出願日 意匠権者Beijing Roborock Technology Co., Ltd. 代理人 意匠に係る物品の説明 意匠の説明1.1 to 1.12 show a first self-cleaning assembly of docking station for cleaning appliance, in which 1.10 and 1.11 each shows a variation state thereof that the cleaning brush of the assembly is rotated to a different position; 1.12 is a reference view showing an assembled and usage state thereof; The broken lines in 1.1 to 1.11 depict portions that form no part of the claimed design; the reference view 1.12 is provided for illustrative purpose and form no part of the claimed design. 1.1)Front; 1.2)Back; 1.3)Left; 1.4)Right; 1.5)Top; 1.6)Bottom; 1.7)Perspective; 1.8)Perspective; 1.9)Perspective; 1.10)Front; 1.11)Front; 1.12)Reference この意匠をJ-PlatPatで参照する
