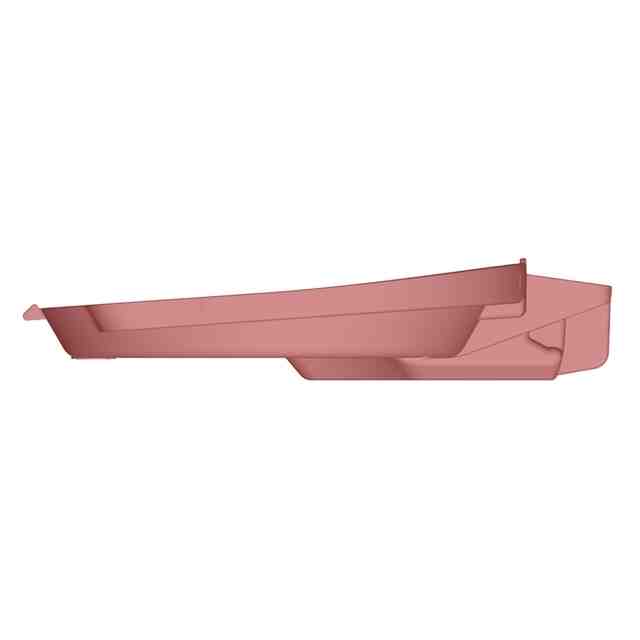

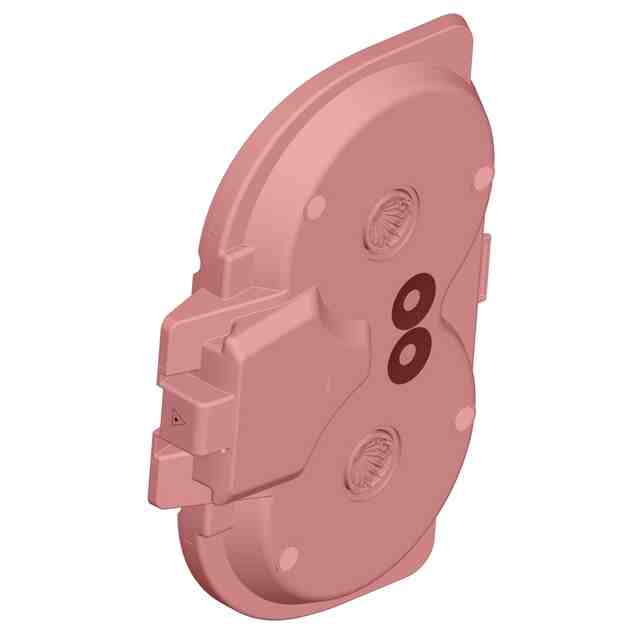

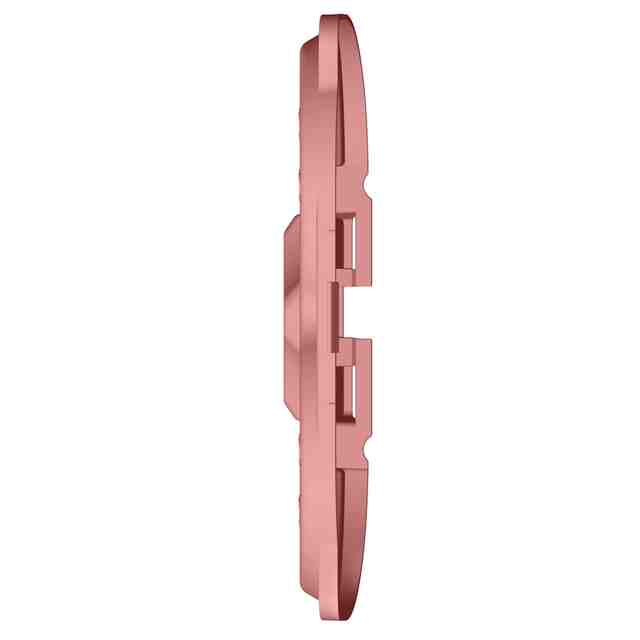

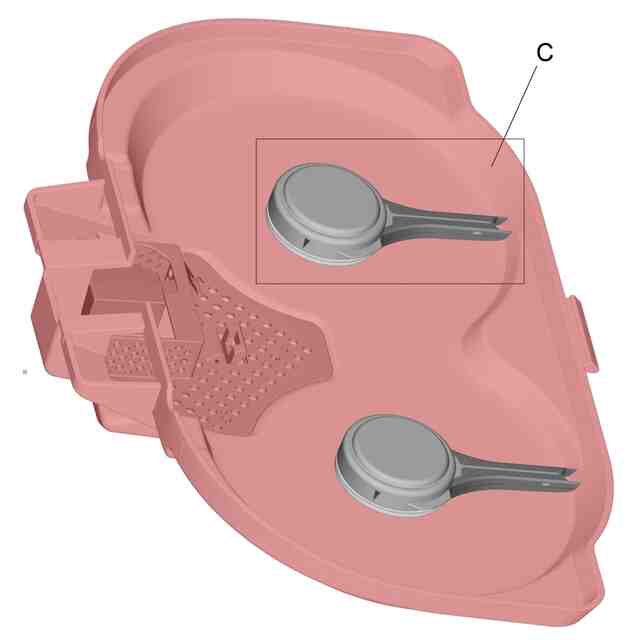

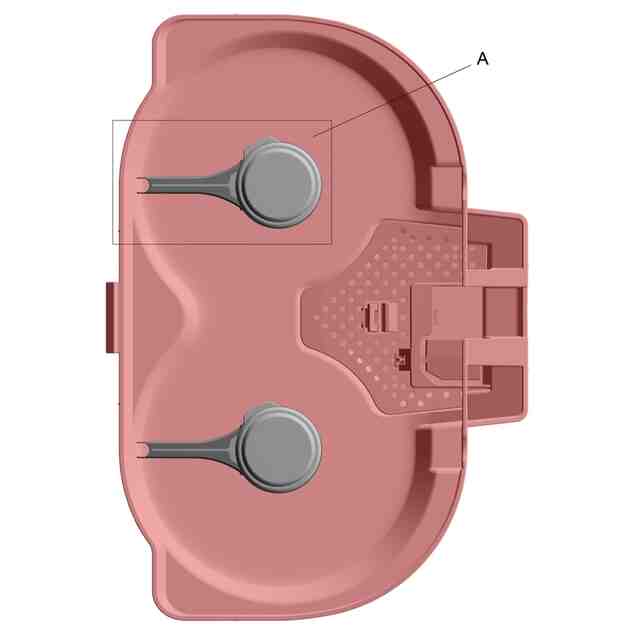

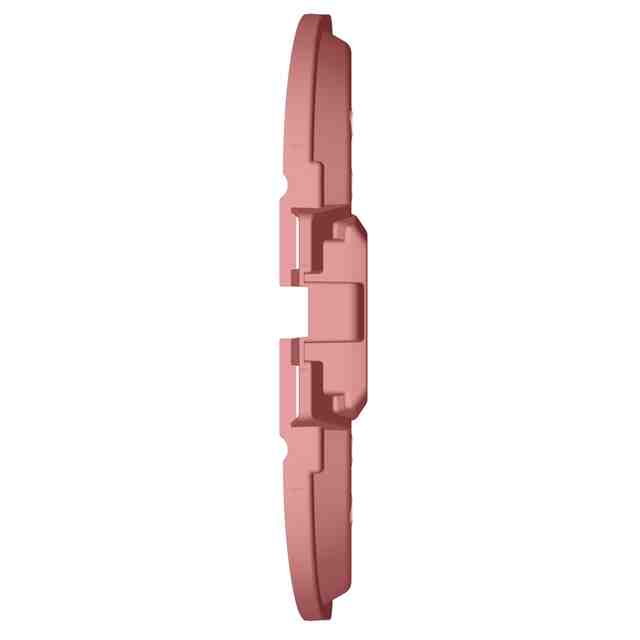

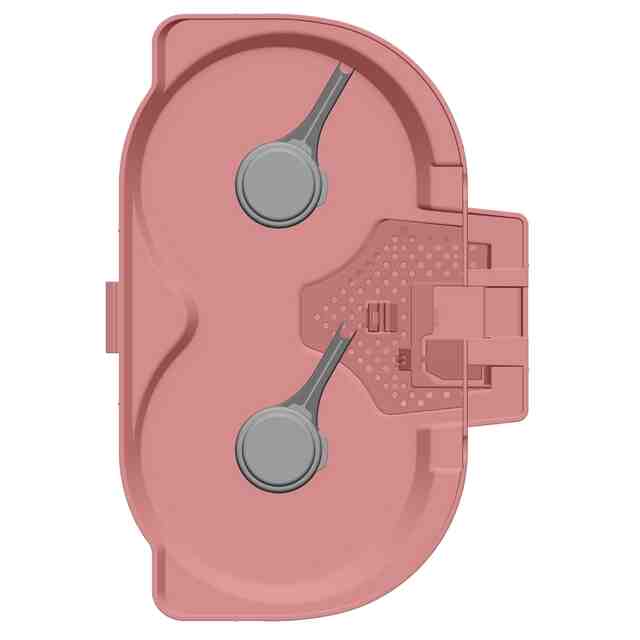

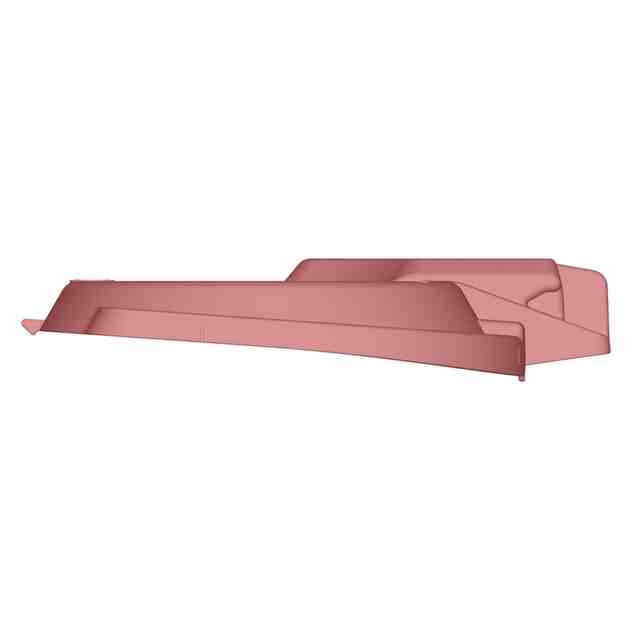

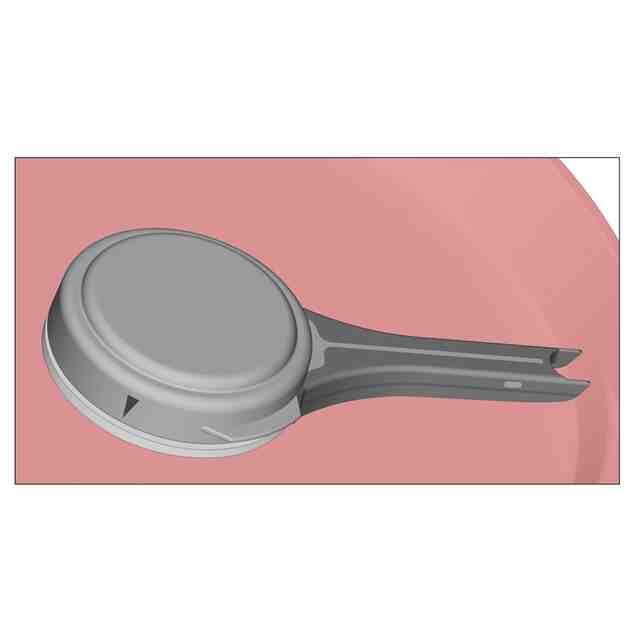

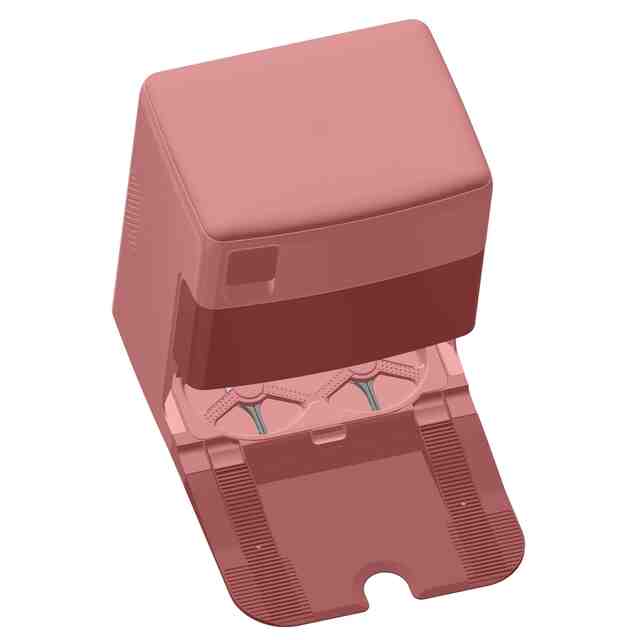

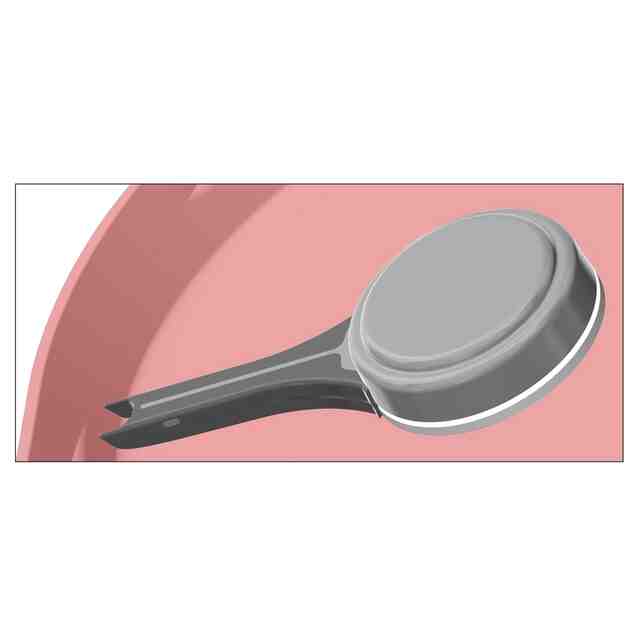

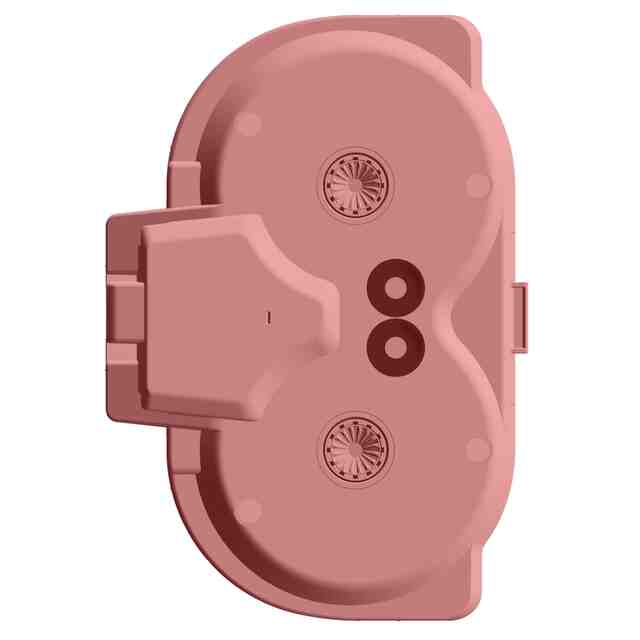

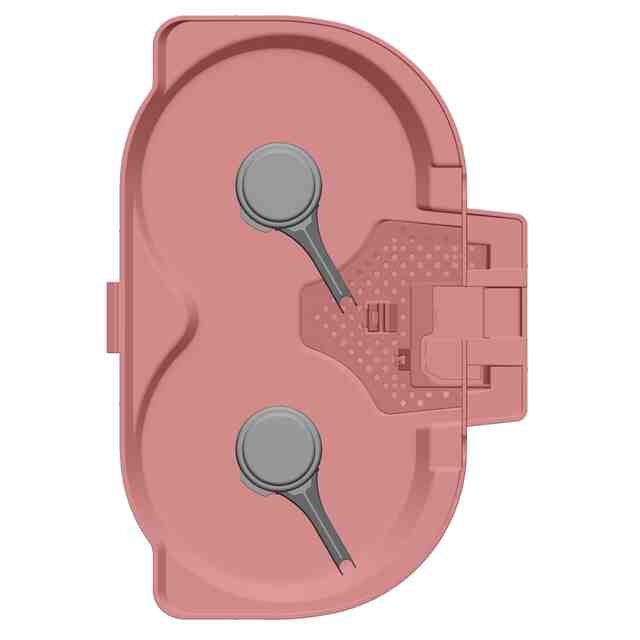

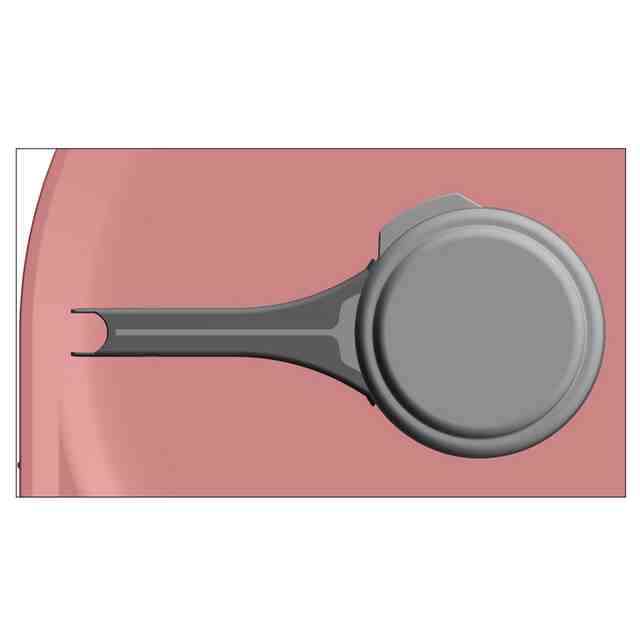

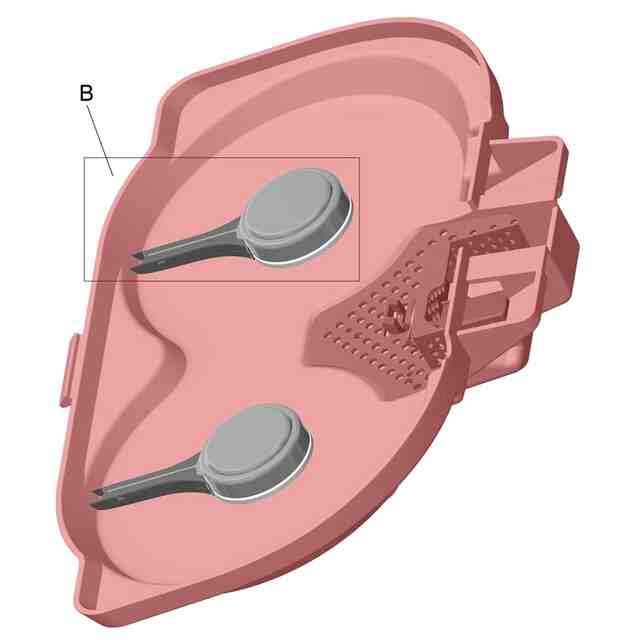

発行日2025-08-05 公報種別意匠公報(S) 登録番号1805396 登録日2025-07-28 意匠に係る物品Self-cleaning part of docking station for cleaning appliance 意匠分類C3-4190(清掃用具、洗濯用具等) 出願番号2024502908,2024301572248 出願日 意匠権者Beijing Roborock Technology Co., Ltd. 代理人 意匠に係る物品の説明 意匠の説明2.1 to 2.15 show a second self-cleaning part of docking station for cleaning appliance, in which 2.2 is an enlarged view of part A in 2.1; 2.9 is an enlarged view of part B in 2.8; 2.11 is an enlarged view of part C in 2.10; 2.13 and 2.14 each shows a different variation state that the cleaning brush of the second self-cleaning part is rotated to a different position; 2.15 is a reference view showing an assembled and usage of the second self-cleaning part in a docking station; the portions covered by translucent red color in 2.1 to 2.14 form no part of the claimed design; the reference view 2.15 is provided for illustrative purpose and form no part of the claimed design. 2.1)Front; 2.2)Enlarged; 2.3)Back; 2.4)Left; 2.5)Right; 2.6)Top; 2.7)Bottom; 2.8)Perspective; 2.9)Enlarged; 2.10)Perspective; 2.11)Enlarged; 2.12)Perspective; 2.13)Front; 2.14)Front; 2.15)reference view この意匠をJ-PlatPatで参照する
