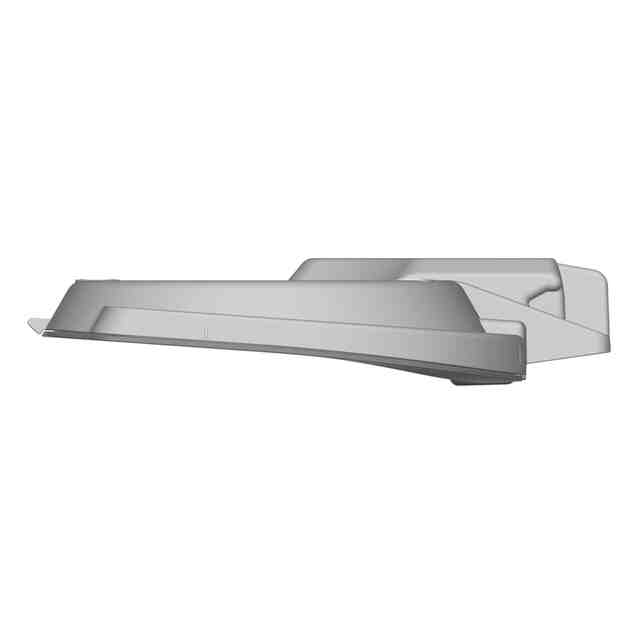

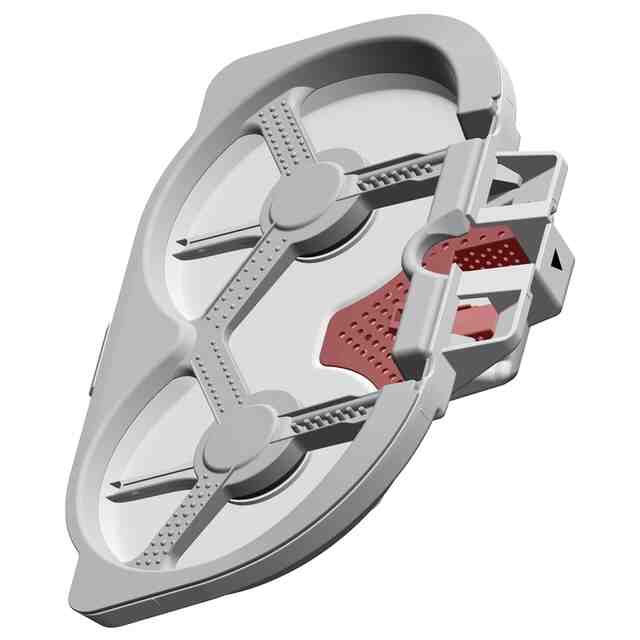

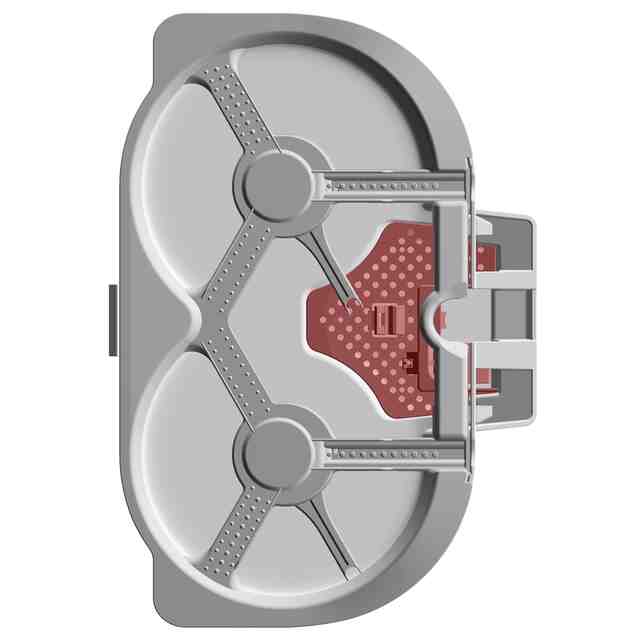

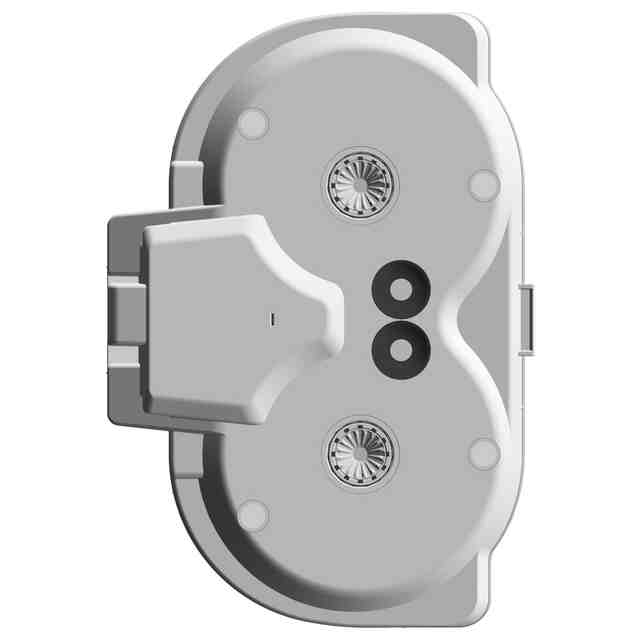

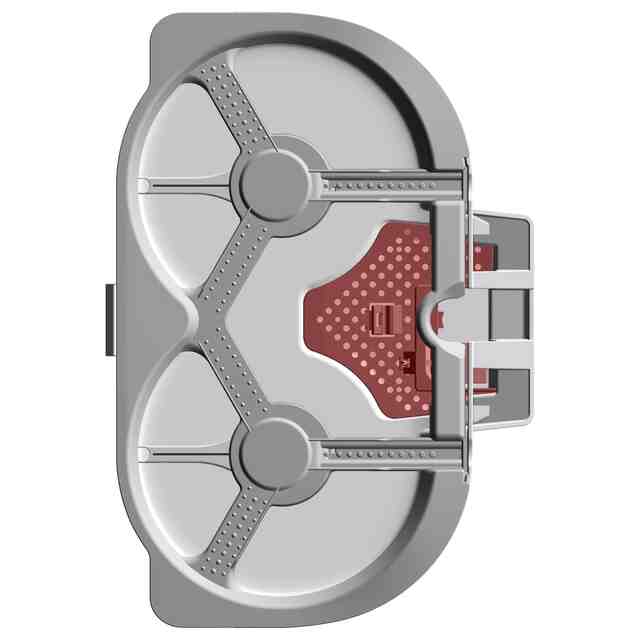

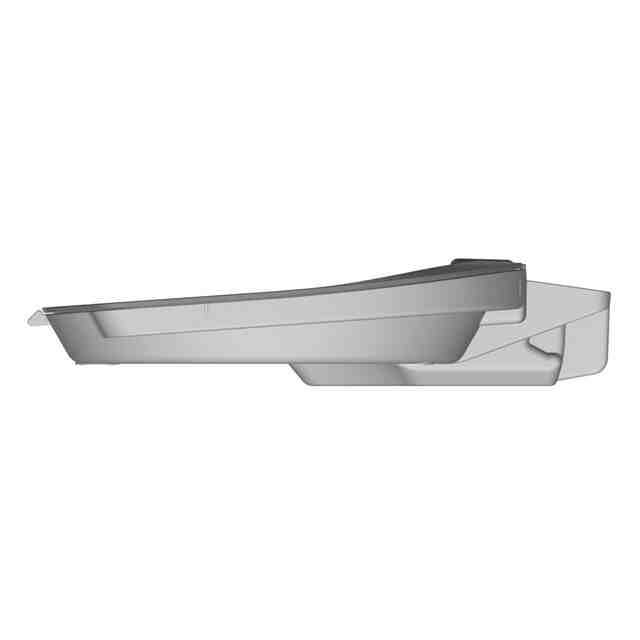

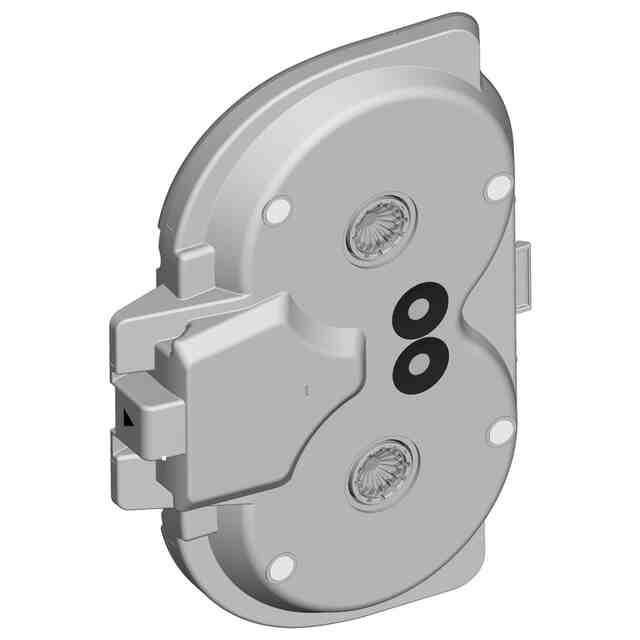

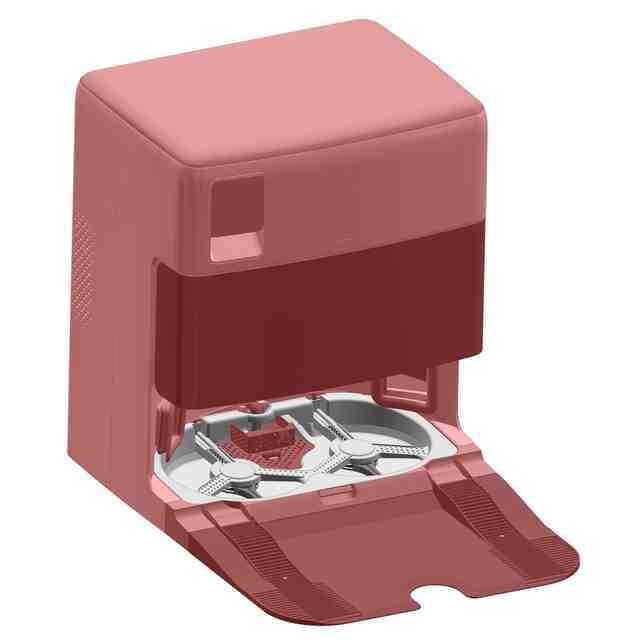

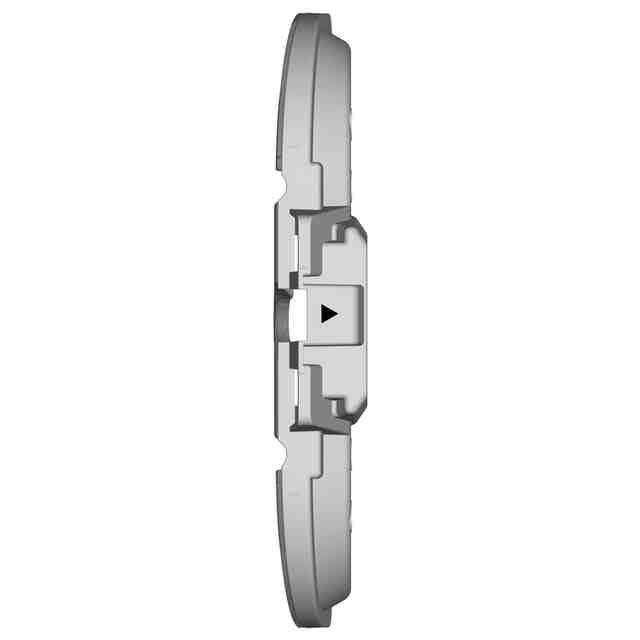

発行日2025-08-05 公報種別意匠公報(S) 登録番号1805397 登録日2025-07-28 意匠に係る物品Self-cleaning assembly of docking station for cleaning appliance 意匠分類C3-4190(清掃用具、洗濯用具等) 出願番号2024502927,2024301572252 出願日 意匠権者Beijing Roborock Technology Co., Ltd. 代理人 意匠に係る物品の説明 意匠の説明2.1 to 2.12 show a second self-cleaning assembly of docking station for cleaning appliance, in which 2.10 and 2.11 each shows a variation state thereof that the cleaning brush of the assembly is rotated to a different position; 2.12 is a reference view showing an assembled and usage state thereof; the portions covered by translucent red color in 2.1 to 2.11 form no part of the claimed design; the reference view 2.12 is provided for illustrative purpose and form no part of the claimed design. 2.1)Front; 2.2)Back; 2.3)Left; 2.4)Right; 2.5)Top; 2.6)Bottom; 2.7)Perspective; 2.8)Perspective; 2.9)Perspective; 2.10)Front; 2.11)Front; 2.12)Reference この意匠をJ-PlatPatで参照する
