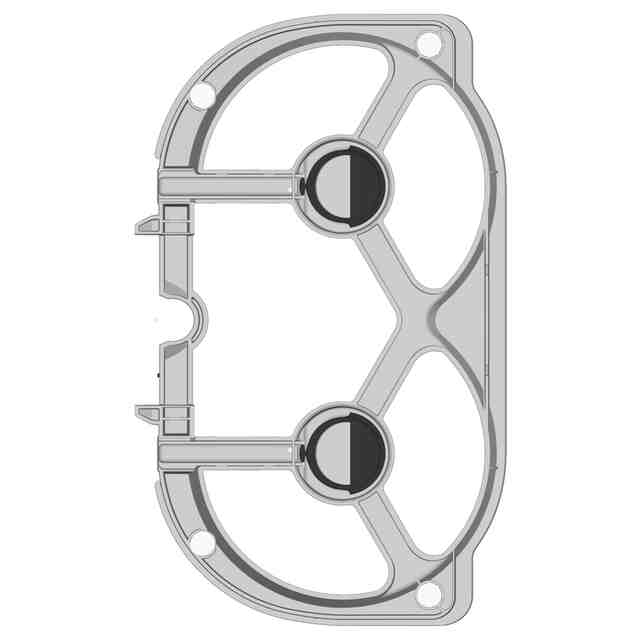

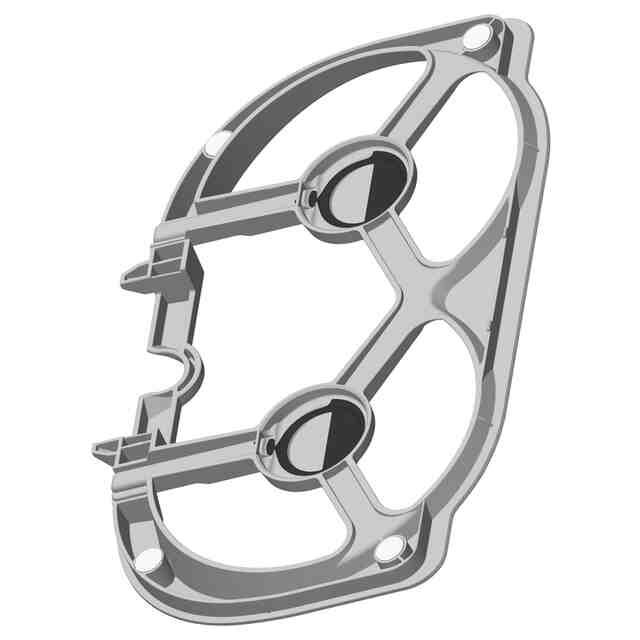

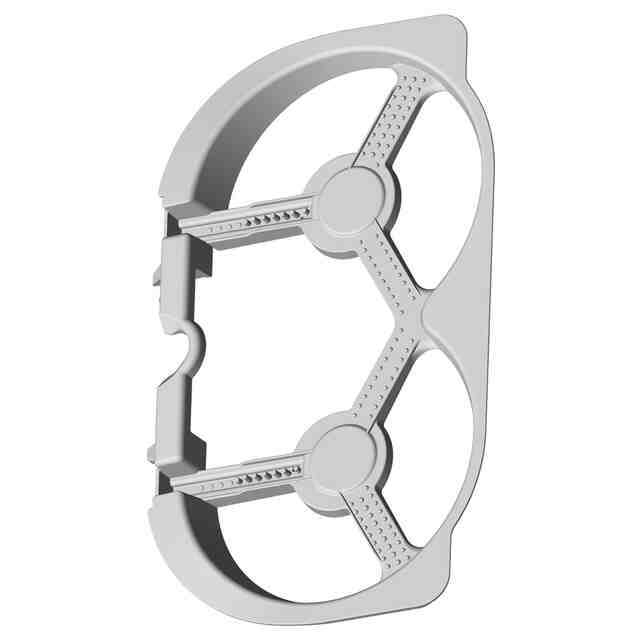

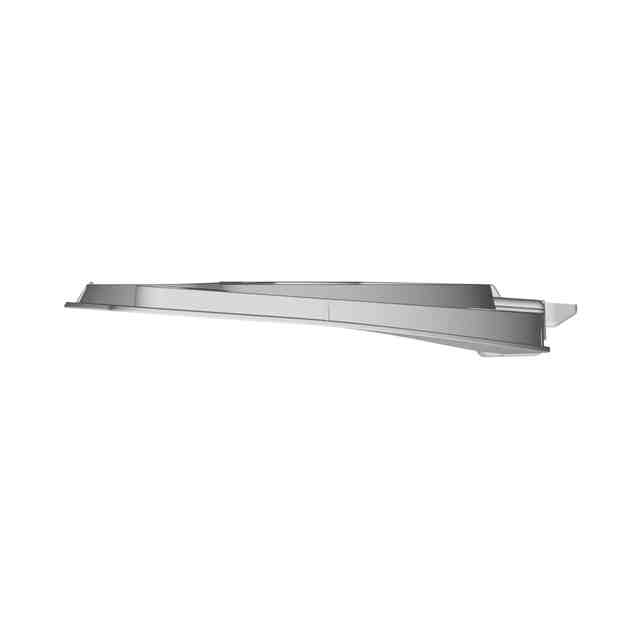

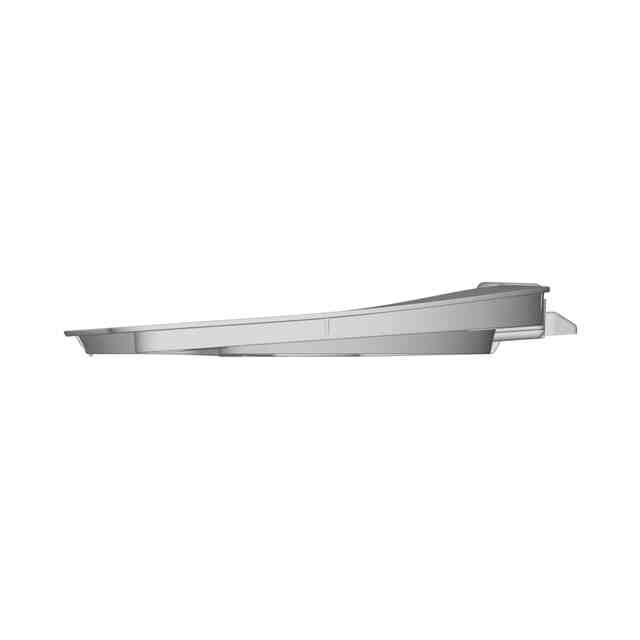

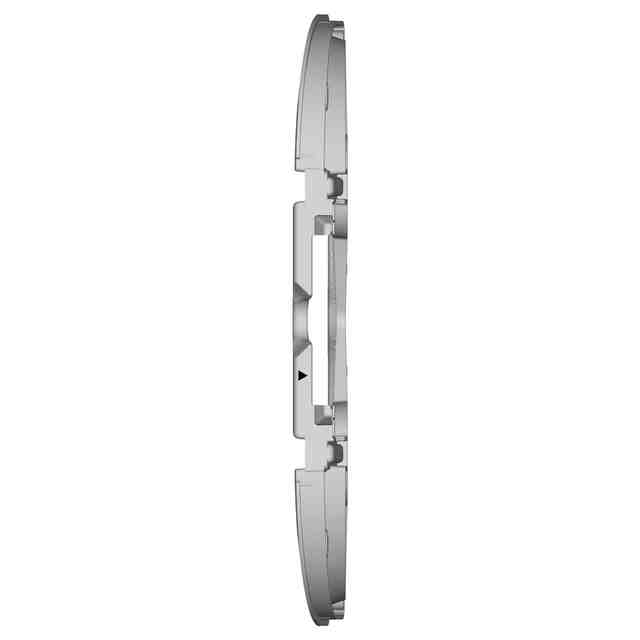

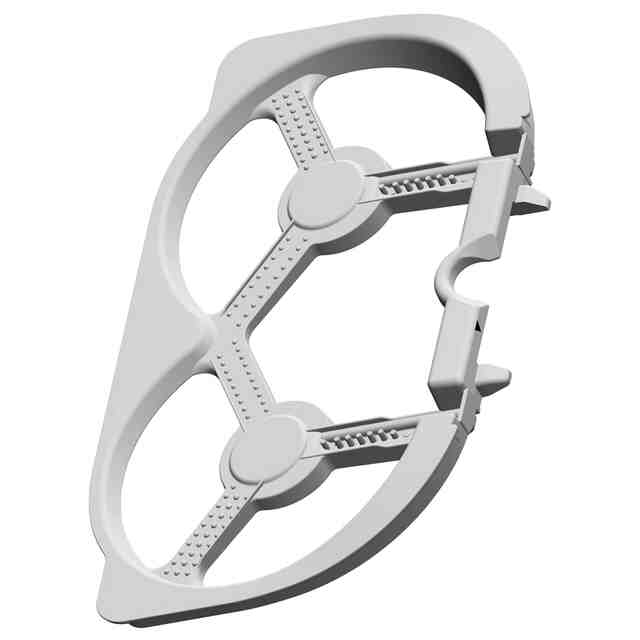

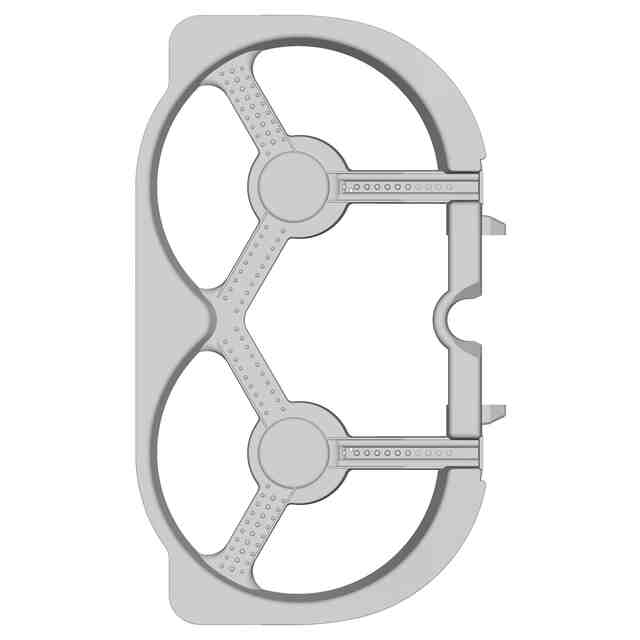

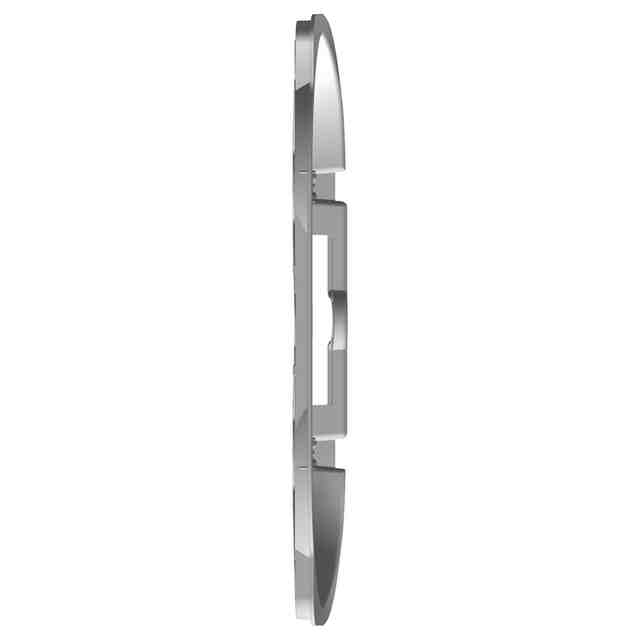

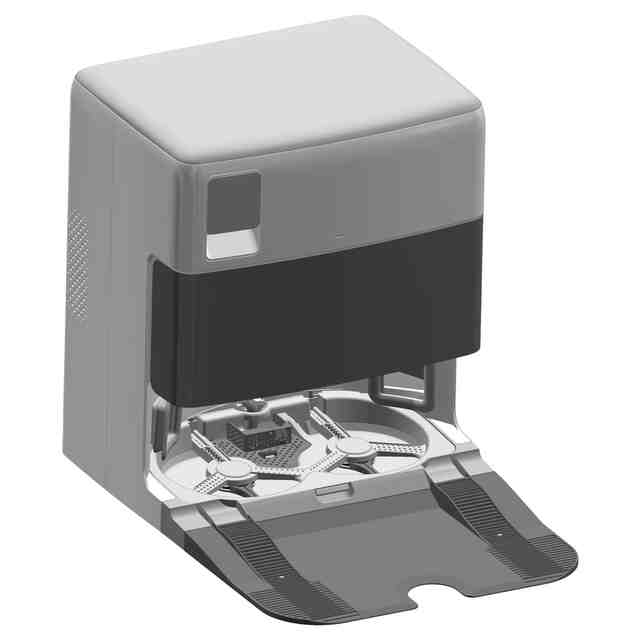

発行日2025-08-05 公報種別意匠公報(S) 登録番号1805398 登録日2025-07-28 意匠に係る物品Self-cleaning part of docking station for cleaning appliance 意匠分類C3-4190(清掃用具、洗濯用具等) 出願番号2024502929,2024301572267 出願日 意匠権者Beijing Roborock Technology Co., Ltd. 代理人 意匠に係る物品の説明 意匠の説明2.1 to 2.6 are six orthographic projection views of a second self-cleaning part of docking station for cleaning appliance; 2.7 to 2.9 are three perspective views thereof; 2.10 is a reference perspective view showing an assembled and usage state thereof; 2.10 is a reference view provided for illustrative purpose only and each forms no part of the claimed design. 2.1)Front; 2.2)Back; 2.3)Left; 2.4)Right; 2.5)Top; 2.6)Bottom; 2.7)Perspective; 2.8)Perspective; 2.9)Perspective; 2.10)Reference この意匠をJ-PlatPatで参照する
