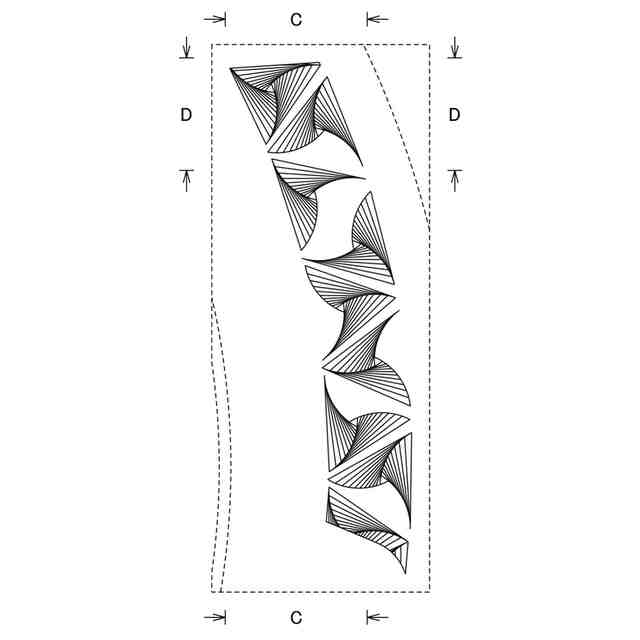

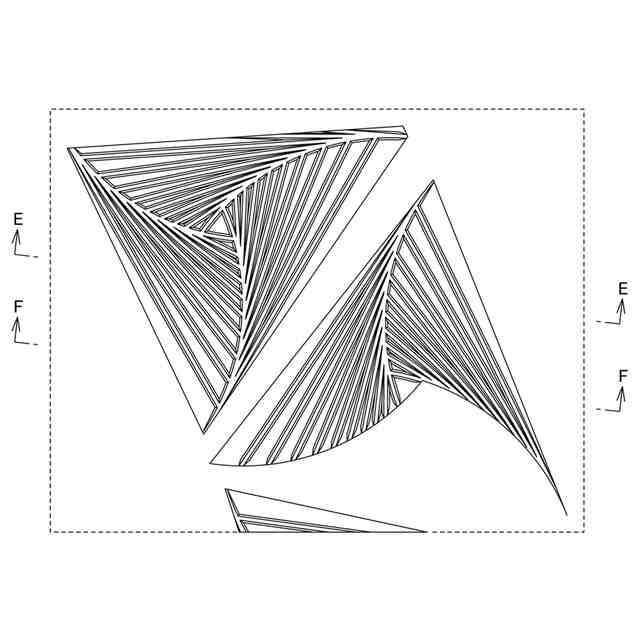

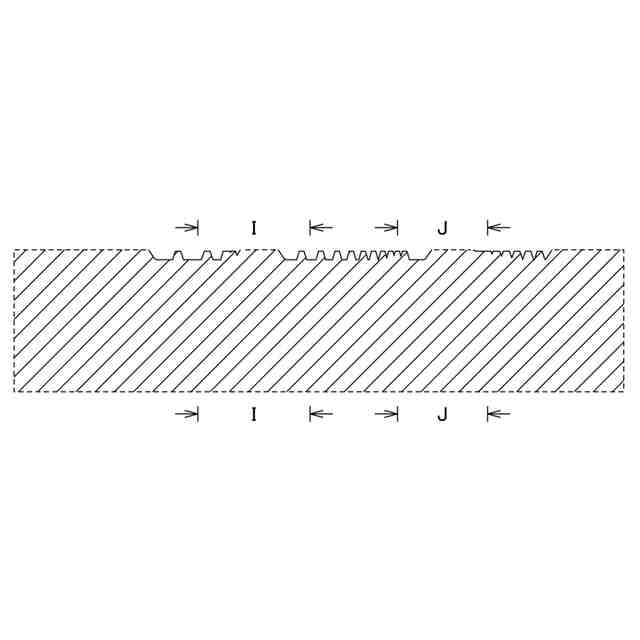

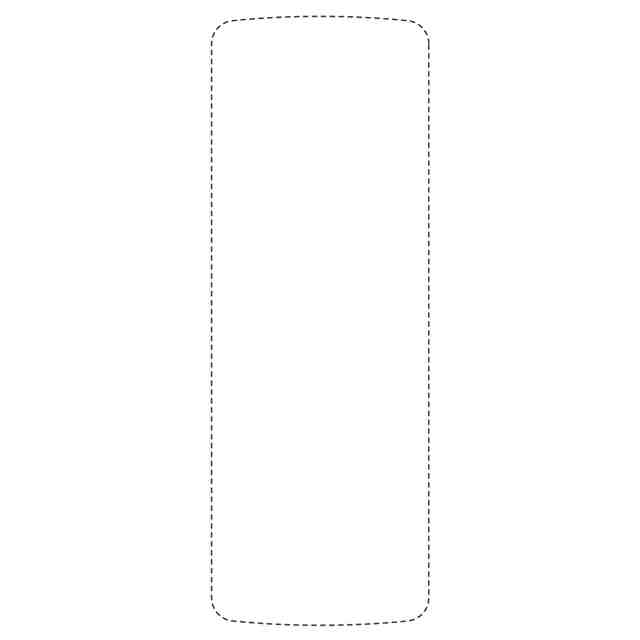

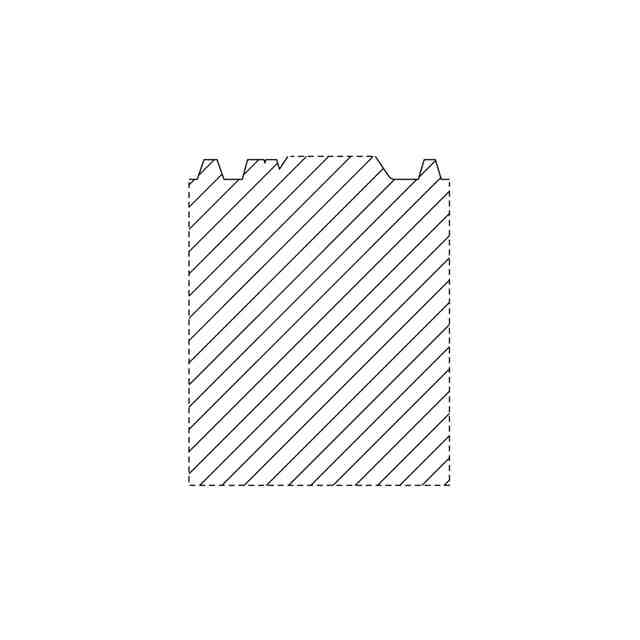

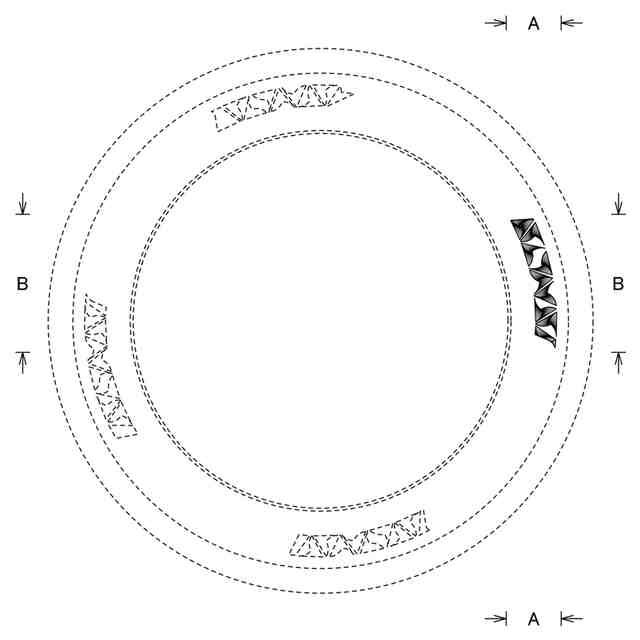

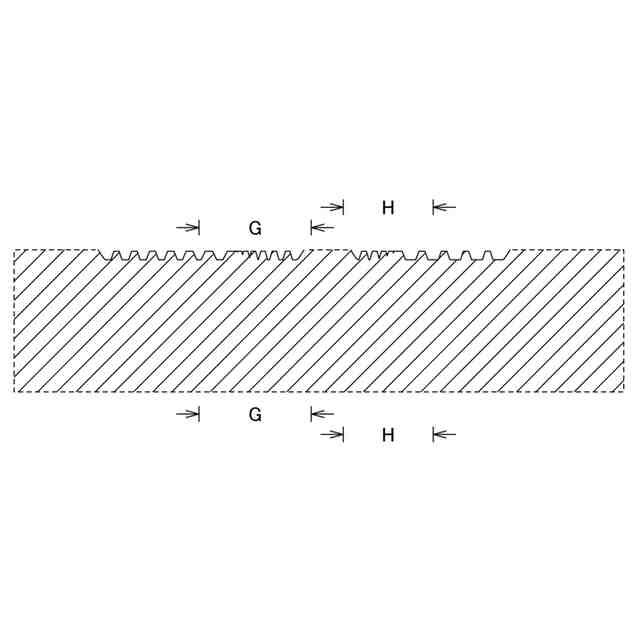

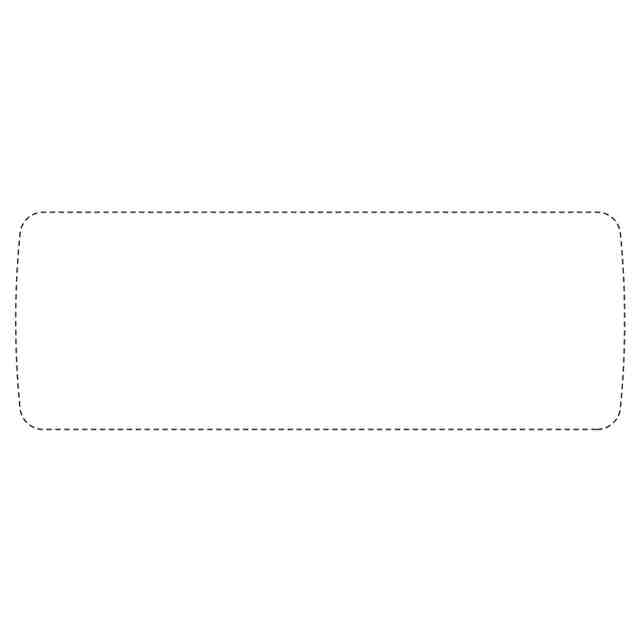

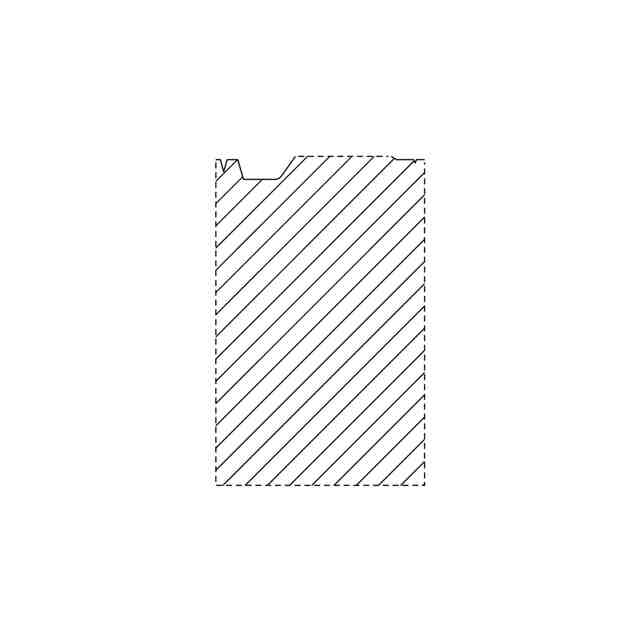

発行日2025-04-02 公報種別意匠公報(S) 登録番号1794882 登録日2025-03-24 意匠に係る物品Tire for automobile 意匠分類G2-91191(車両) 出願番号2023504251 出願日 意匠権者SUMITOMO RUBBER INDUSTRIES, LTD. 代理人弁理士法人深見特許事務所 意匠に係る物品の説明 意匠の説明The broken lines shown in the drawings represent portions of a tire for automobile that form no part of the claimed design; fig. 1.1 is a front elevation view of the tire for automobile; fig. 1.2 is a partial enlarged view of A-B portion of fig. 1.1; fig. 1.3 is a partial enlarged view of C-D portion of fig. 1.2; fig. 1.4 is an end face view taken along line E-E of fig. 1.3; fig. 1.5 is an end face view taken along line F-F of fig. 1.3; fig. 1.6 is a partial enlarged view of G-G portion of fig. 1.4; fig. 1.7 is a partial enlarged view of H-H portion of fig. 1.4; fig. 1.8 is a partial enlarged view of I-I portion of fig. 1.5; fig. 1.9 is a partial enlarged view of J-J portion of fig. 1.5; fig. 1.10 is a back elevation view thereof; fig. 1.11 is a top plan view thereof; fig. 1.12 is a bottom plan view thereof; fig. 1.13 is a right side elevation view thereof; and fig. 1.14 is a left side elevation view thereof; The usage of the product: Tire for automobile; The essential features of the design: the shape of the sidewall portion of the tire; The view or photograph that best represents the essential features: front elevation view. 1.1)Front; 1.2)Enlarged; 1.3)Enlarged; 1.4)End face view; 1.5)End face view; 1.6)Enlarged; 1.7)Enlarged; 1.8)Enlarged; 1.9)Enlarged; 1.10)Back; 1.11)Top; 1.12)Bottom; 1.13)Right; 1.14)Left この意匠をJ-PlatPatで参照する
