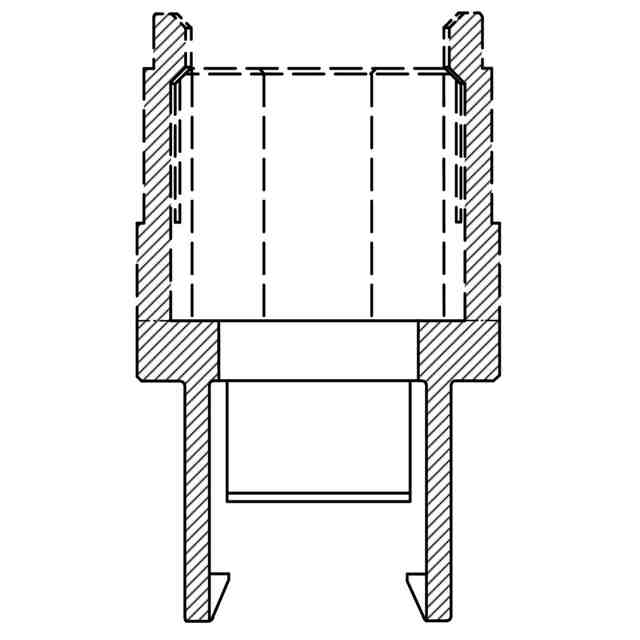

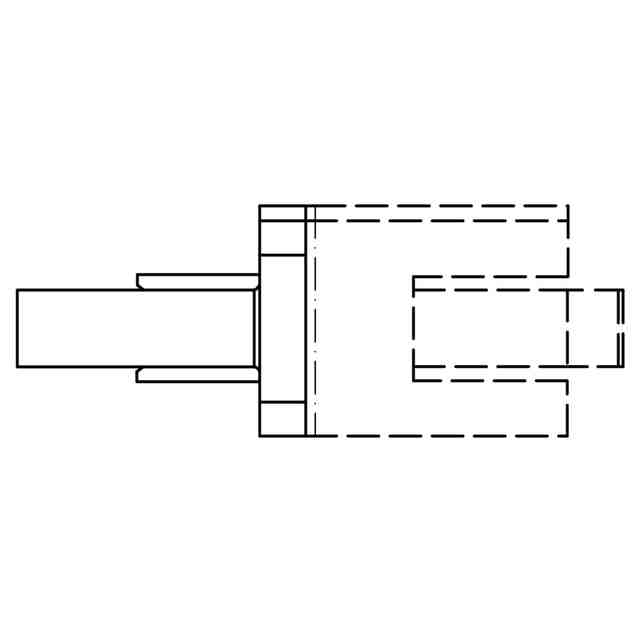

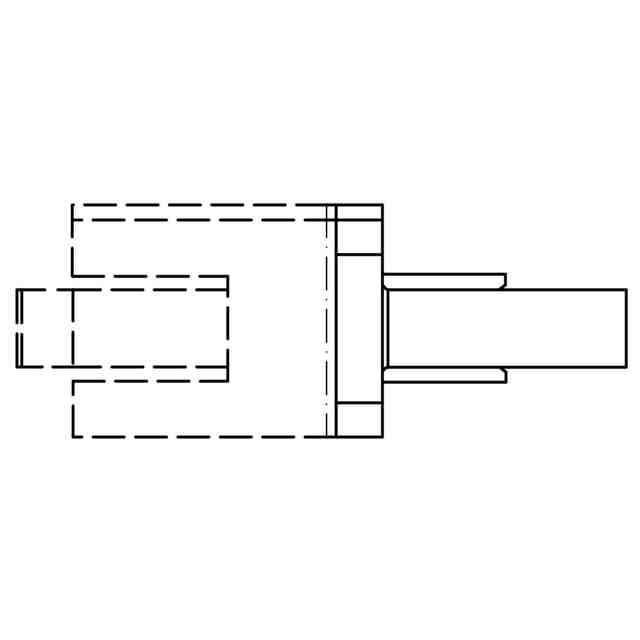

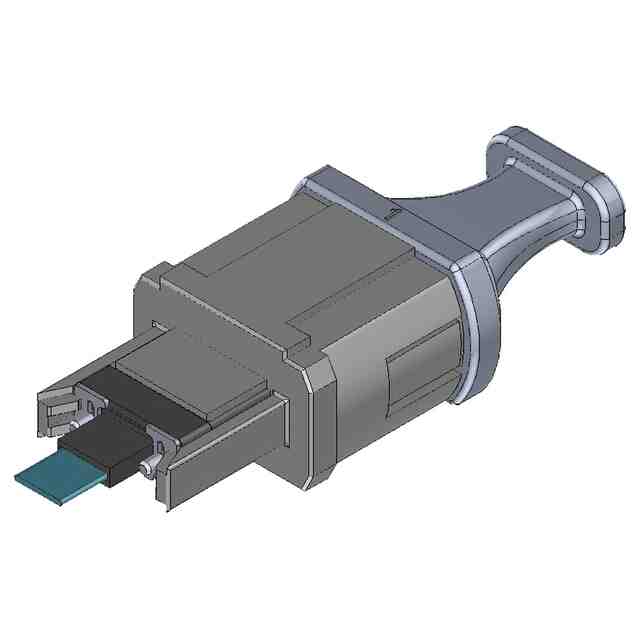

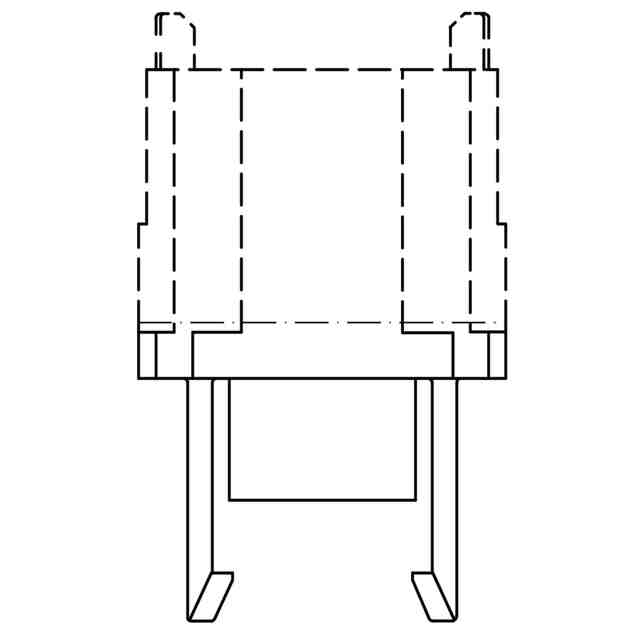

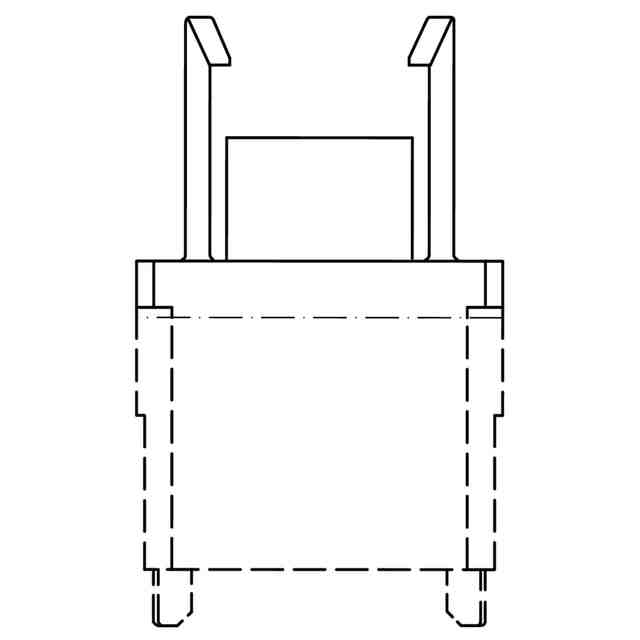

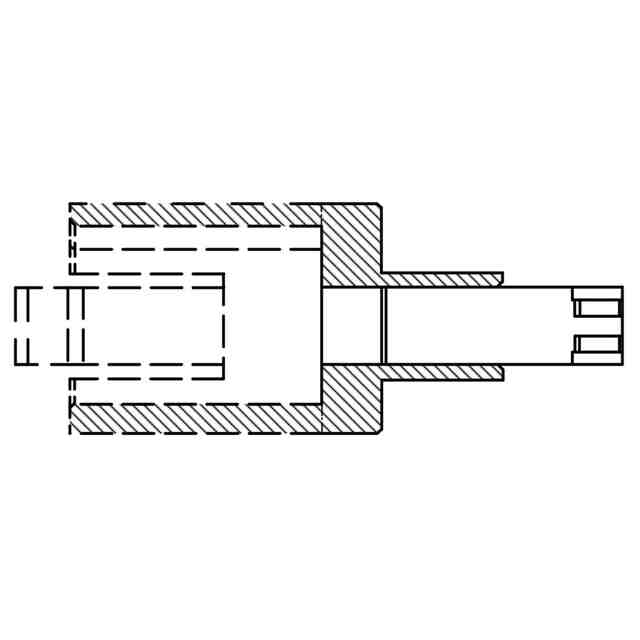

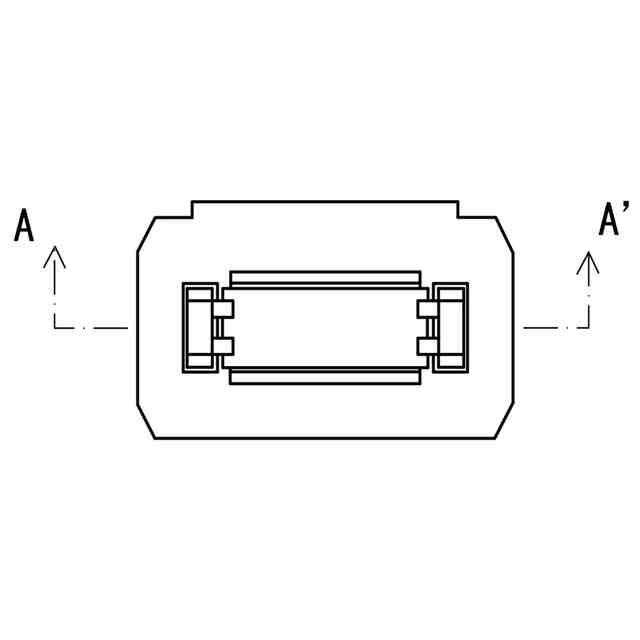

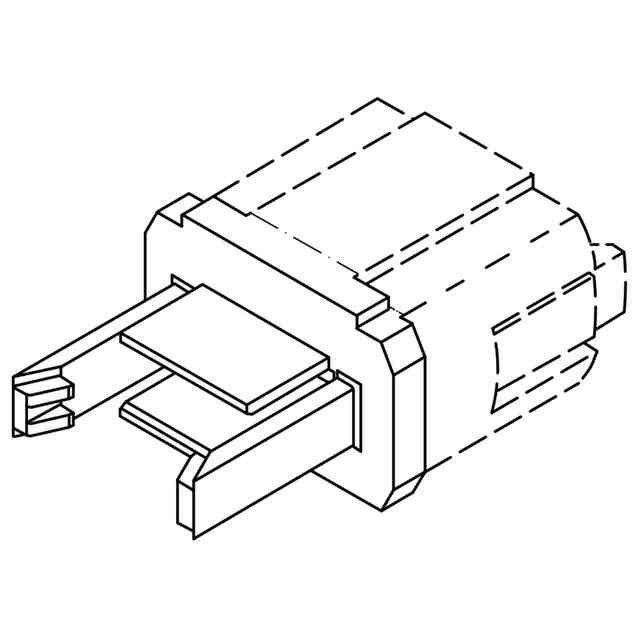

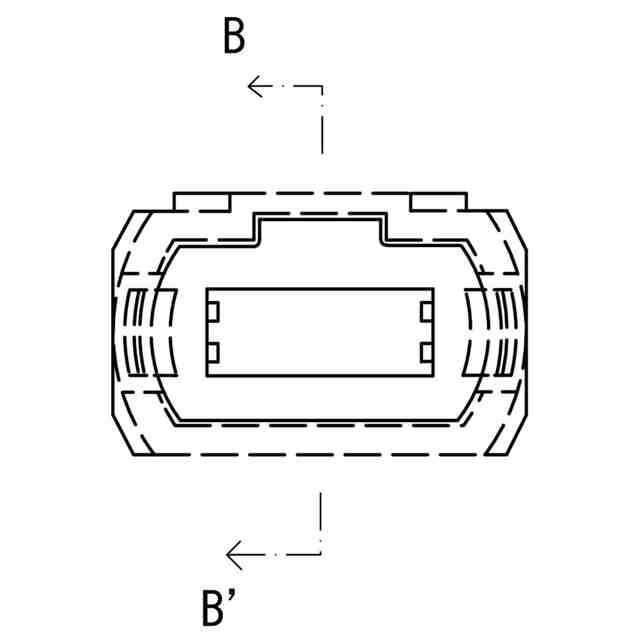

発行日2025-09-18 公報種別意匠公報(S) 登録番号1808683 登録日2025-09-08 意匠に係る物品Optical fiber connector 意匠分類H1-302(基本的電気素子) 出願番号2023503327 出願日 意匠権者Hakusan Inc. 代理人弁理士法人クレイア特許事務所 意匠に係る物品の説明 意匠の説明Name of this industrial design product: optical fiber connector; purpose of this industrial design product: used for holding a ferrule and connecting optical fibers; key design feature of this industrial design product: its shape; the picture or photo that best represents the key design feature: reproduction 1.1; reproduction 1.1 is a perspective view showing the front, top, and right side of the design; reproduction 1.8 is a cross-sectional view along line A-A’ of reproduction 1.2; reproduction 1.9 is a cross-sectional view along line B-B’ of reproduction 1.3; the broken lines, the dash-dotted broken lines, arrows and letters(A and B) in the reproductions form no part of the claimed design; the dash-dotted broken lines define the boundaries between the claimed portion and the other portions; the reproduction 1.10 is a reference view showing the usage states of the product and they do not form part of the claimed design. 1.1)Perspective; 1.2)Front; 1.3)Back; 1.4)Top; 1.5)Bottom; 1.6)Left; 1.7)Right; 1.8)Cross sectional; 1.9)Cross sectional; 1.10)Reference この意匠をJ-PlatPat（特許庁公式サイト）で参照する
