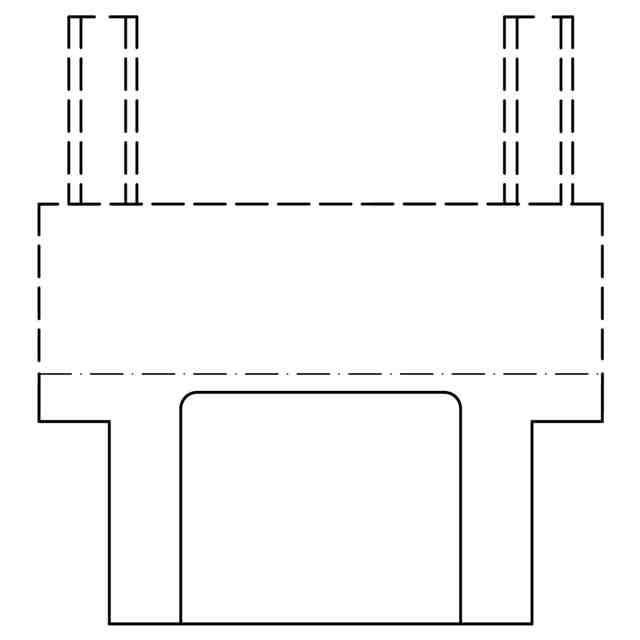

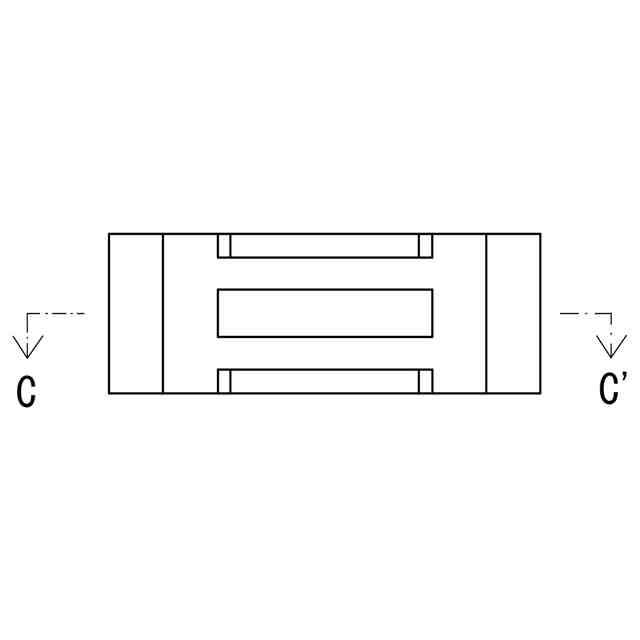

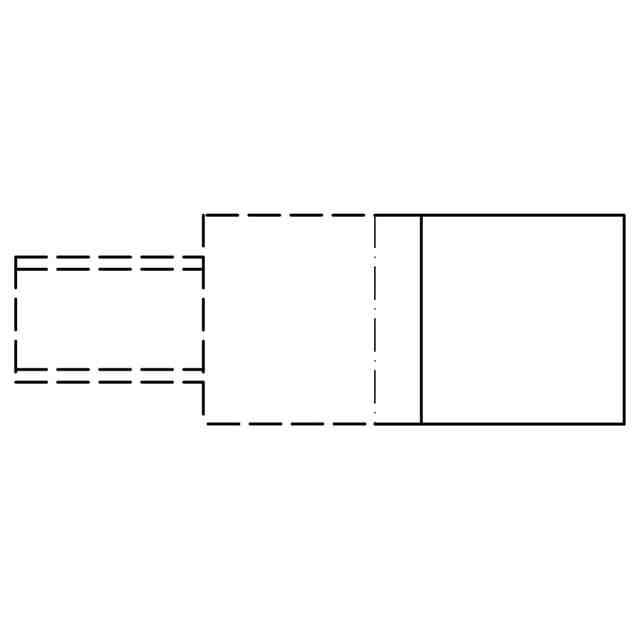

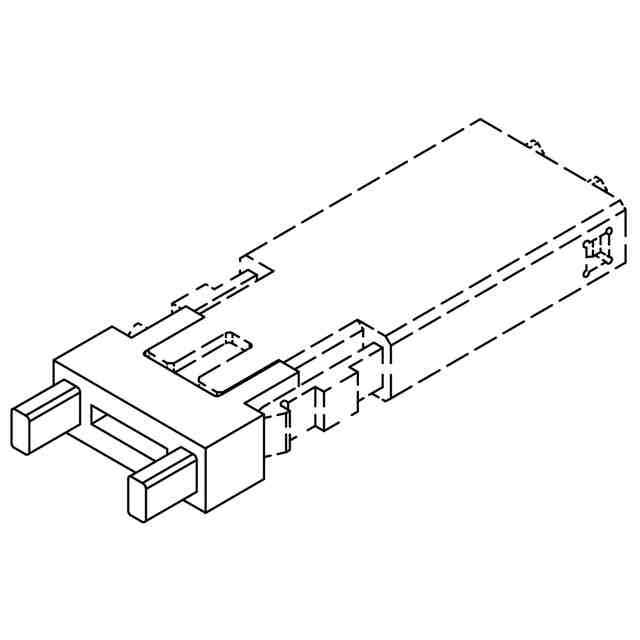

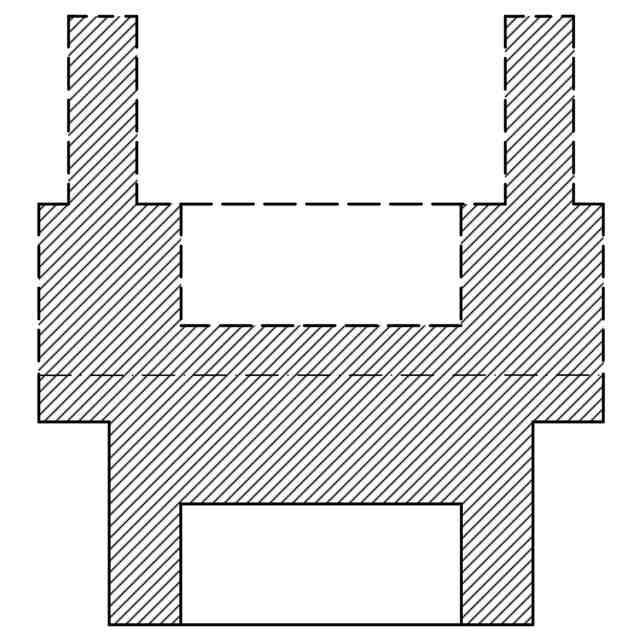

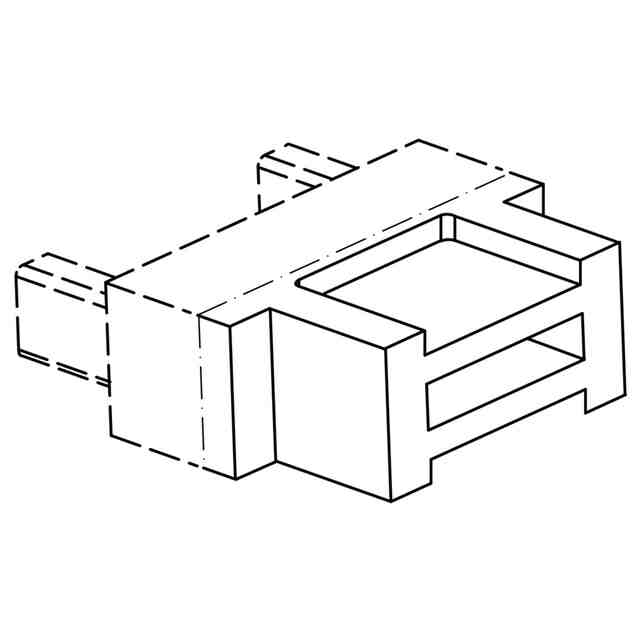

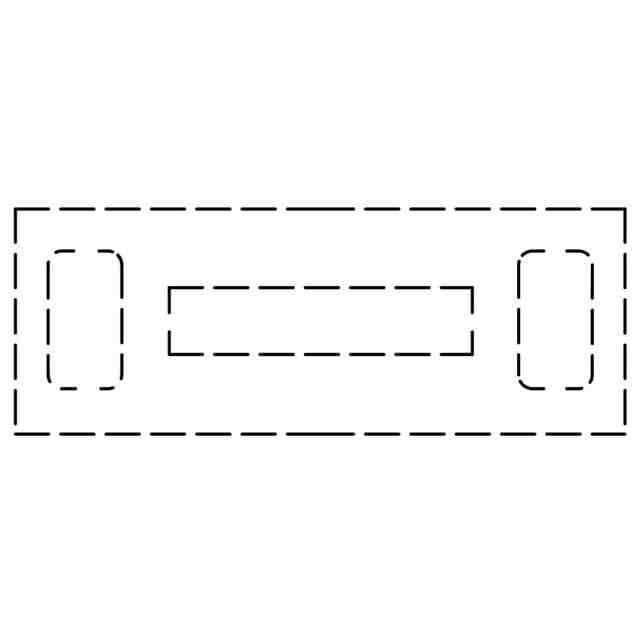

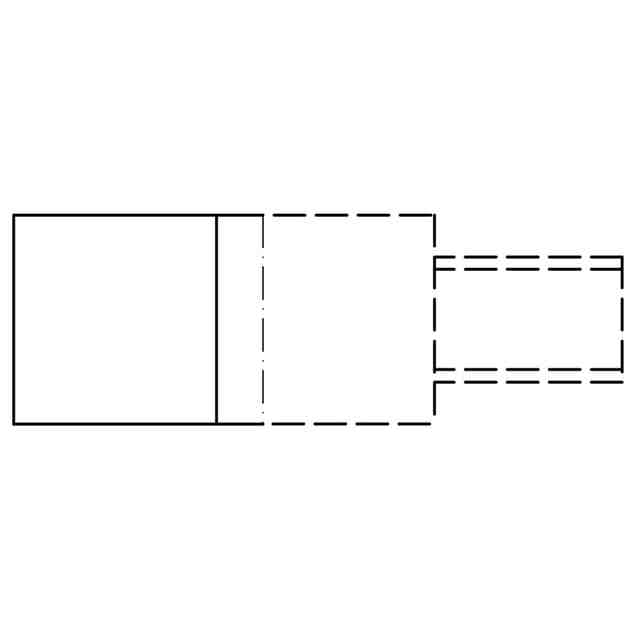

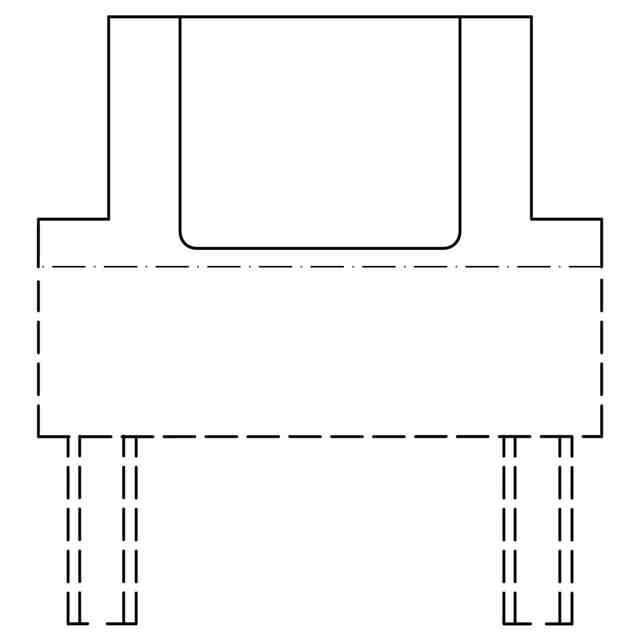

発行日2025-09-25 公報種別意匠公報(S) 登録番号1809192 登録日2025-09-16 意匠に係る物品Cap for optical fiber connector 意匠分類H1-390(基本的電気素子) 出願番号2024502698 出願日 意匠権者Hakusan Inc. 代理人 意匠に係る物品の説明 意匠の説明Name of this industrial design product: cap for optical fiber connector; purpose of this industrial design product: used to protect plugs and/or receptacles; key design feature of this industrial design product: its shape; the picture or photo that best represents the key design feature: reproduction 3.1; reproduction 3.1 is a perspective view showing the front, top, and left side of the design; reproduction 3.8 is a cross-sectional view taken along lines C-C’ in reproduction 3.2; the broken lines, the dot-dash broken lines, arrows and letters(C) in the reproductions form no part of the claimed design; the dot-dash broken lines define the bounds of the claimed design and form no part thereof; the reproduction 3.9 is a reference view showing the usage states of the product and they do not form part of the claimed design. 3.1)Perspective; 3.2)Front; 3.3)Back; 3.4)Top; 3.5)Bottom; 3.6)Left; 3.7)Right; 3.8)Cross sectional; 3.9)Reference この意匠をJ-PlatPat（特許庁公式サイト）で参照する
