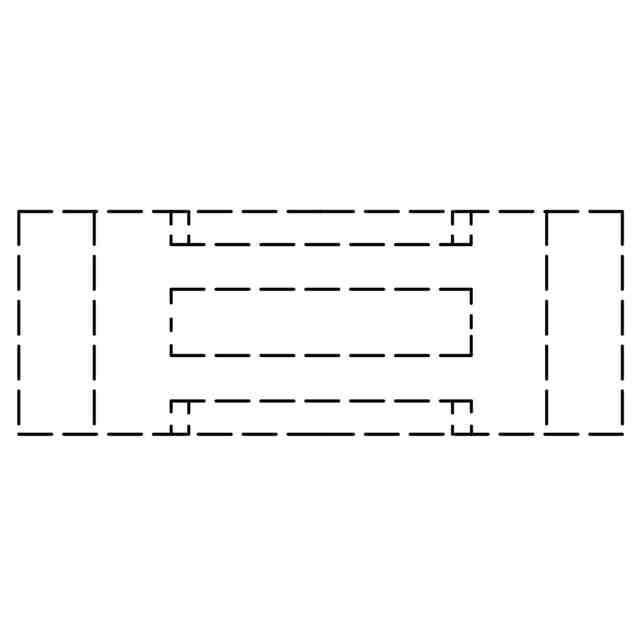

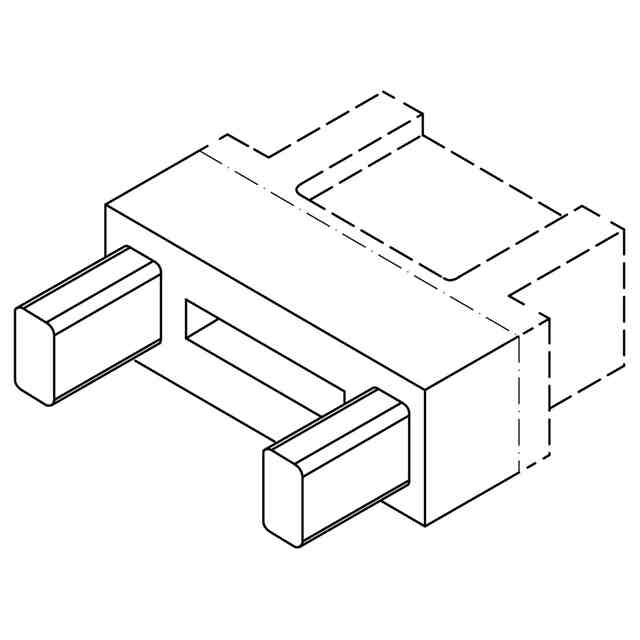

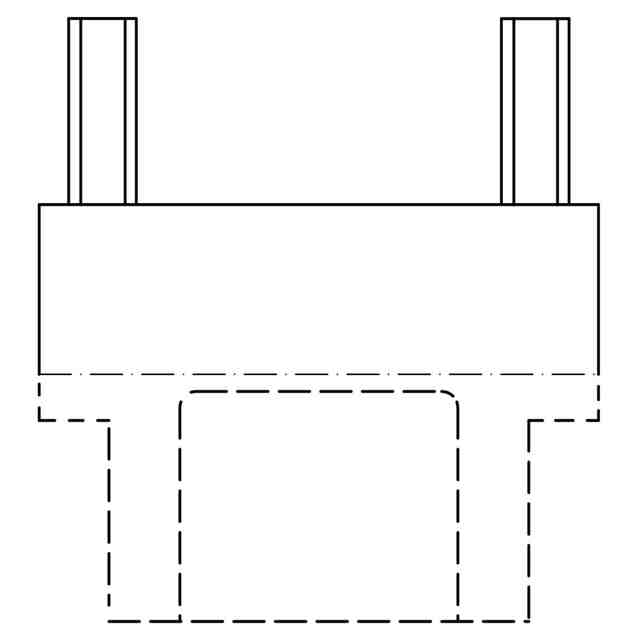

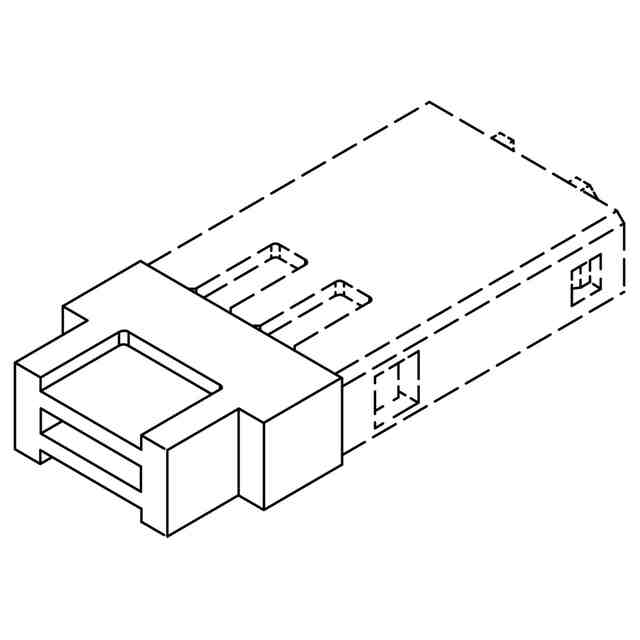

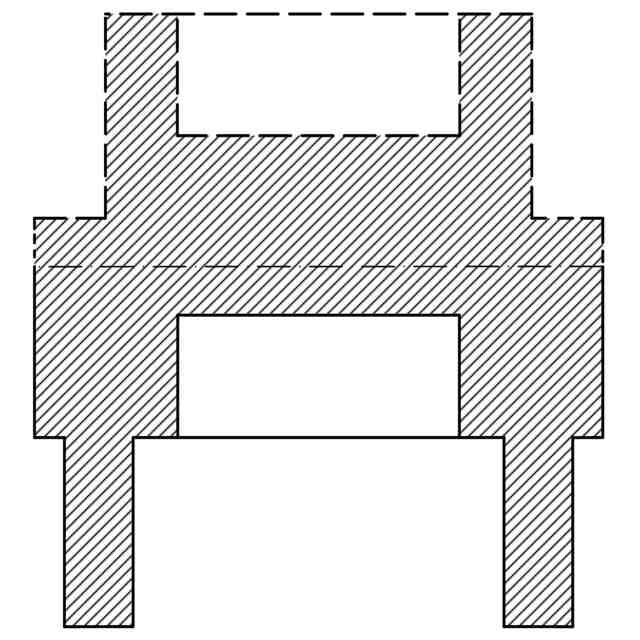

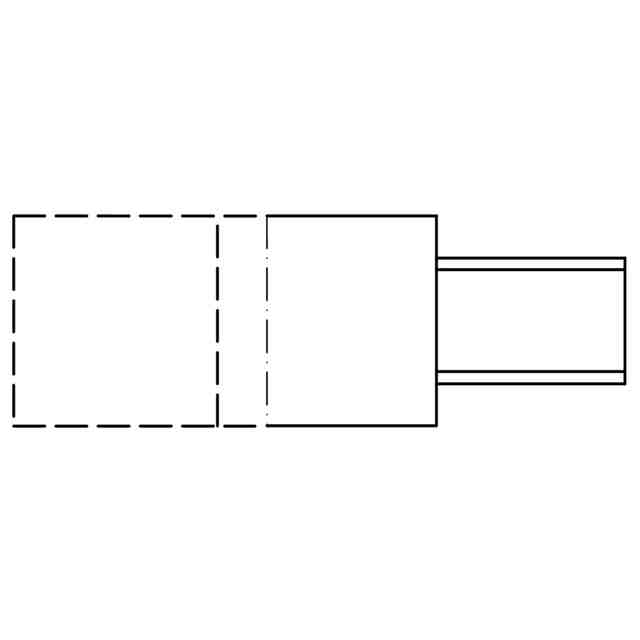

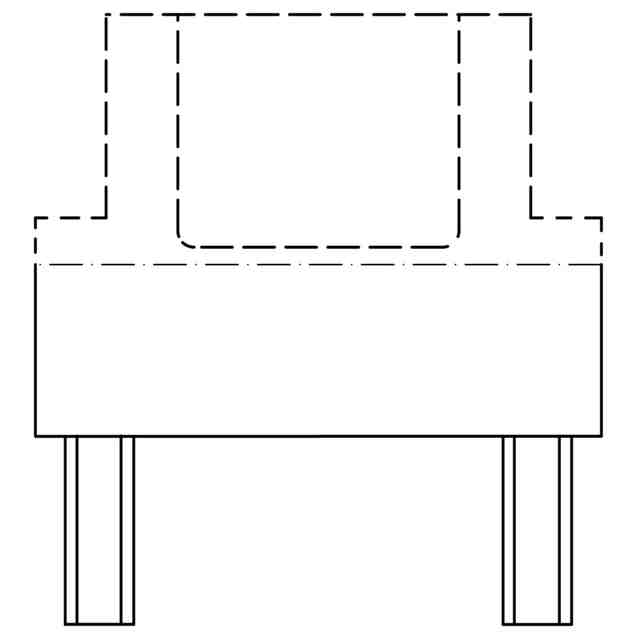

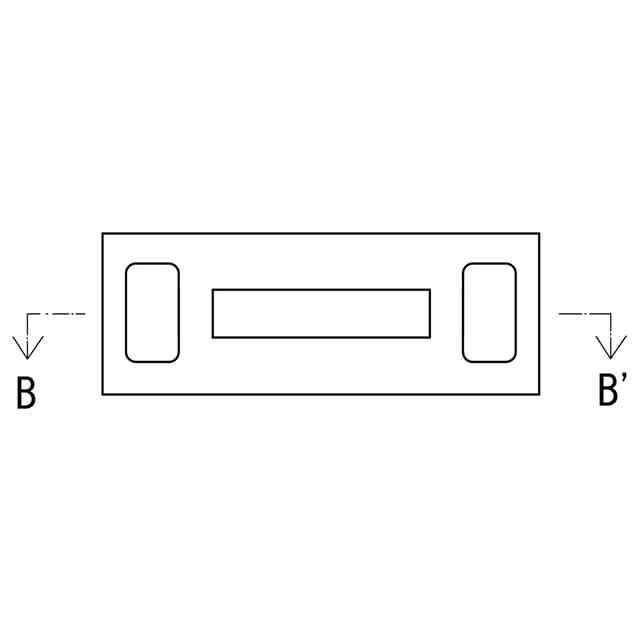

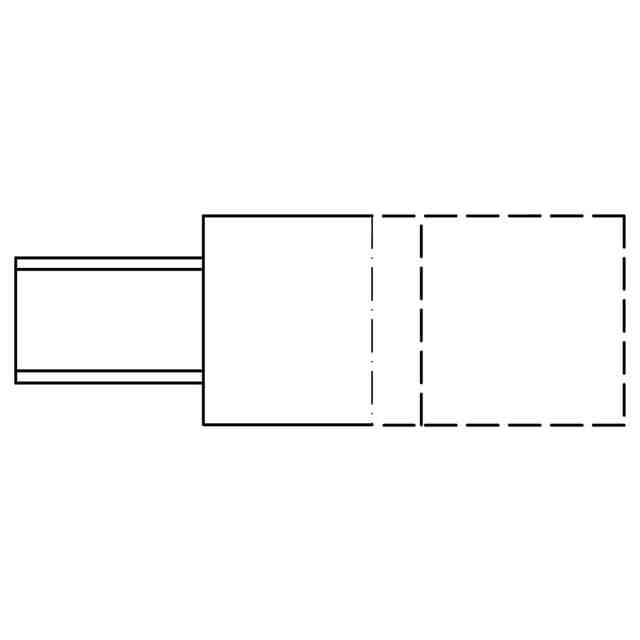

発行日2025-09-25 公報種別意匠公報(S) 登録番号1809191 登録日2025-09-16 意匠に係る物品Cap for optical fiber connector 意匠分類H1-390(基本的電気素子) 出願番号2024502697 出願日 意匠権者Hakusan Inc. 代理人 意匠に係る物品の説明 意匠の説明Name of this industrial design product: cap for optical fiber connector; purpose of this industrial design product: used to protect plugs and/or receptacles; key design feature of this industrial design product: its shape; the picture or photo that best represents the key design feature: reproduction 2.1; reproduction 2.1 is a perspective view showing the front, top, and right side of the design; reproduction 2.8 is a cross-sectional view taken along lines B-B’ in reproduction 2.2; the broken lines, the dot-dash broken lines, arrows and letters(B) in the reproductions form no part of the claimed design; the dot-dash broken lines define the bounds of the claimed design and form no part thereof; the reproduction 2.9 is a reference view showing the usage states of the product and they do not form part of the claimed design. 2.1)Perspective; 2.2)Front; 2.3)Back; 2.4)Top; 2.5)Bottom; 2.6)Left; 2.7)Right; 2.8)Cross sectional; 2.9)Reference この意匠をJ-PlatPat（特許庁公式サイト）で参照する
